NTPsec

A-ntpsec-72-hour-stats

Report generated: Fri Jan 9 17:09:57 2026 UTC
Start Time: Tue Jan 6 17:09:56 2026 UTC
End Time: Fri Jan 9 17:09:56 2026 UTC
Report published: Fri Jan 09 09:10:23 AM 2026 PST
Report Period: 3.0 days

Local Clock Time/Frequency Offsets

local offset plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Time Offset -3.570 -2.295 -1.342 0.059 1.003 1.427 3.722 2.345 3.722 0.712 -0.010 µs -4.923 15.42
Local Clock Frequency Offset -586.044 -580.246 -539.169 -294.327 -191.666 -185.547 -182.266 347.503 394.699 103.496 -315.642 ppb -79.39 383.5

The time and frequency offsets between the ntpd calculated time and the local system clock. Showing frequency offset (red, in parts per million, scale on right) and the time offset (blue, in μs, scale on left). Quick changes in time offset will lead to larger frequency offsets.

These are fields 3 (time) and 4 (frequency) from the loopstats log file.



Local RMS Time Jitter

local jitter plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Time Jitter 0.236 0.418 0.516 0.869 1.404 1.654 2.993 0.888 1.236 0.275 0.903 µs 19.38 68.1

The RMS Jitter of the local clock offset. In other words, how fast the local clock offset is changing.

Lower is better. An ideal system would be a horizontal line at 0μs.

RMS jitter is field 5 in the loopstats log file.



Local RMS Frequency Jitter

local stability plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Frequency Jitter 110.000 166.000 197.000 323.000 509.000 587.000 1,262.000 312.000 421.000 97.156 334.224 10e-12 22.61 83.37

The RMS Frequency Jitter (aka wander) of the local clock's frequency. In other words, how fast the local clock changes frequency.

Lower is better. An ideal clock would be a horizontal line at 0ppm.

RMS Frequency Jitter is field 6 in the loopstats log file.



Local Clock Time Offset Histogram

local offset histogram plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Offset -3.570 -2.295 -1.342 0.059 1.003 1.427 3.722 2.345 3.722 0.712 -0.010 µs -4.923 15.42

The clock offsets of the local clock as a histogram.

The Local Clock Offset is field 3 from the loopstats log file.



Local Temperatures

local temps plot

Local temperatures. These will be site-specific depending upon what temperature sensors you collect data from. Temperature changes affect the local clock crystal frequency and stability. The math of how temperature changes frequency is complex, and also depends on crystal aging. So there is no easy way to correct for it in software. This is the single most important component of frequency drift.

The Local Temperatures are from field 3 from the tempstats log file.



Local Frequency/Temp

local freq temps plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -586.044 -580.246 -539.169 -294.327 -191.666 -185.547 -182.266 347.503 394.699 103.496 -315.642 ppb -79.39 383.5
Temp ZONE0 43.470 43.470 44.008 46.160 47.236 47.774 47.774 3.228 4.304 1.030 46.001 °C

The frequency offsets and temperatures. Showing frequency offset (red, in parts per million, scale on right) and the temperatures.

These are field 4 (frequency) from the loopstats log file, and field 3 from the tempstats log file.



Local GPS

local gps plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
nSats 7.000 8.000 8.000 10.000 12.000 12.000 12.000 4.000 4.000 1.174 9.992 nSat 446.7 3530
TDOP 0.490 0.510 0.560 0.790 1.190 1.480 1.870 0.630 0.970 0.204 0.831 39.47 163.4

Local GPS. The Time Dilution of Precision (TDOP) is plotted in blue. The number of visible satellites (nSat) is plotted in red.

TDOP is field 3, and nSats is field 4, from the gpsd log file. The gpsd log file is created by the ntploggps program.

TDOP is a dimensionless error factor. Smaller numbers are better. TDOP ranges from 1 (ideal), 2 to 5 (good), to greater than 20 (poor). Some GNSS receivers report TDOP less than one which is theoretically impossible.



Server Offsets

peer offsets plot

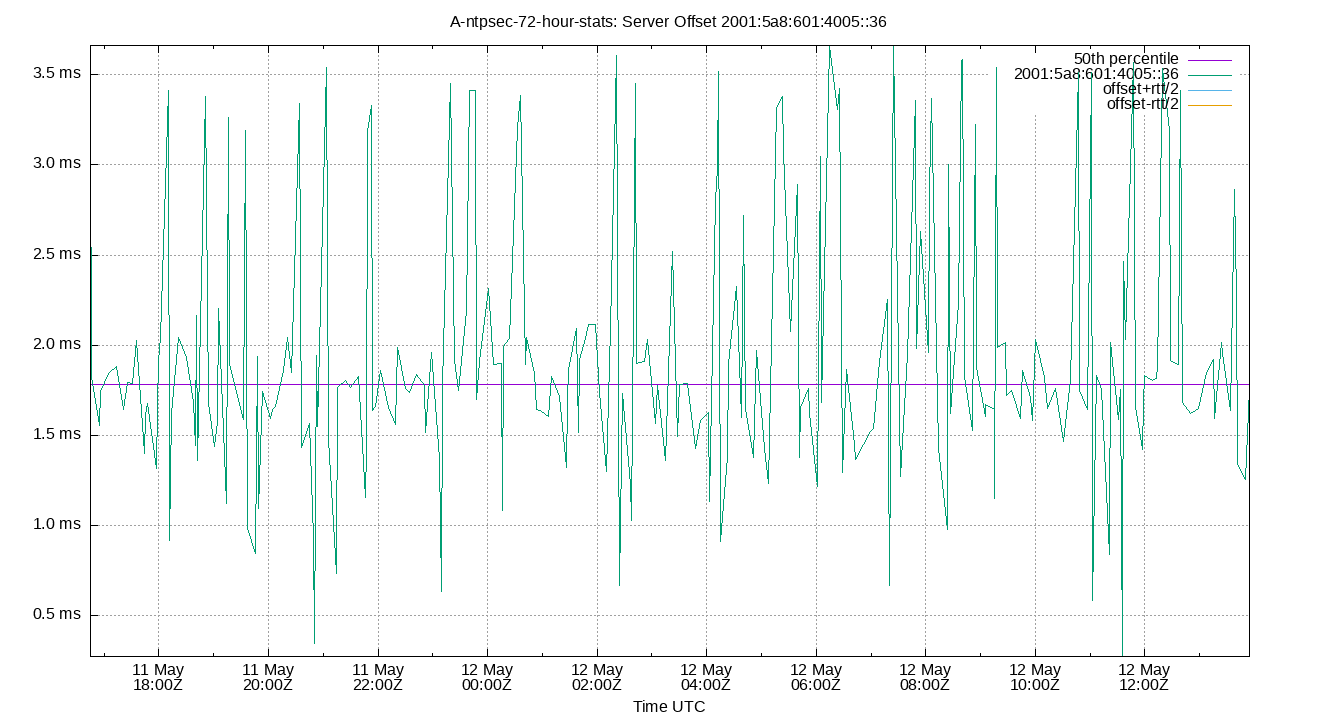

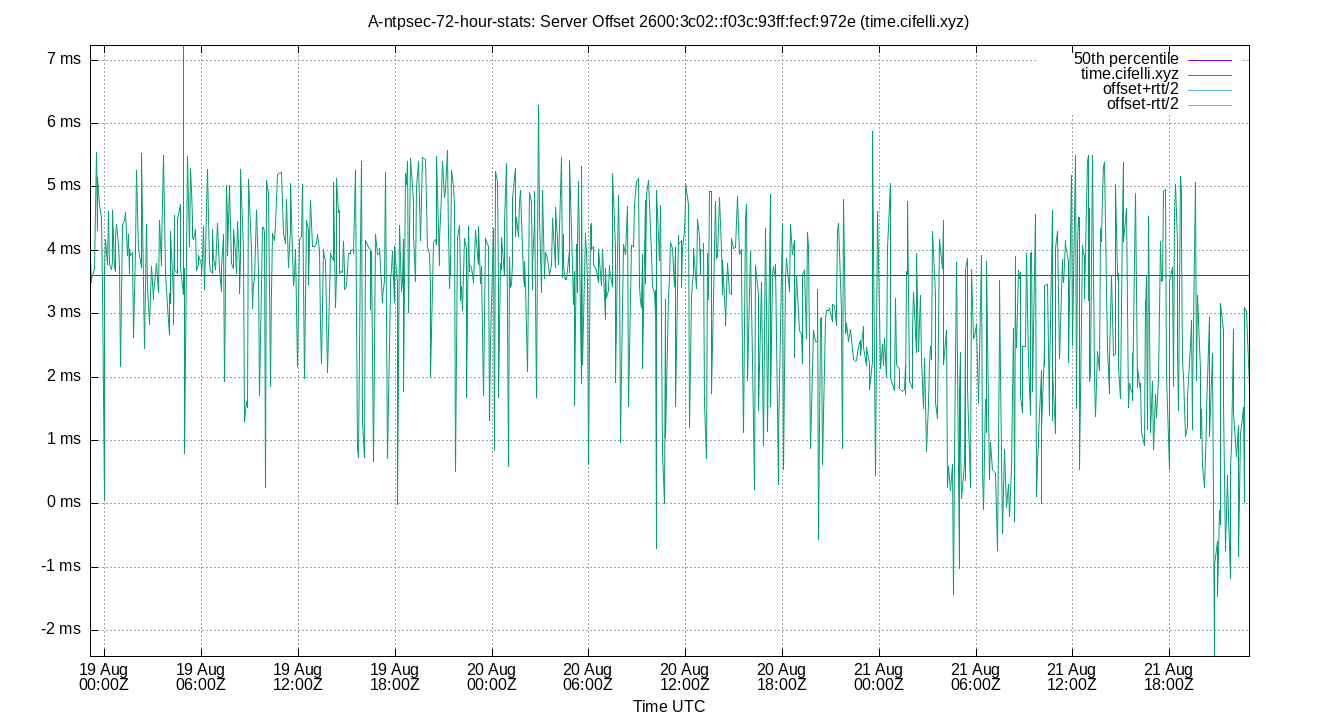

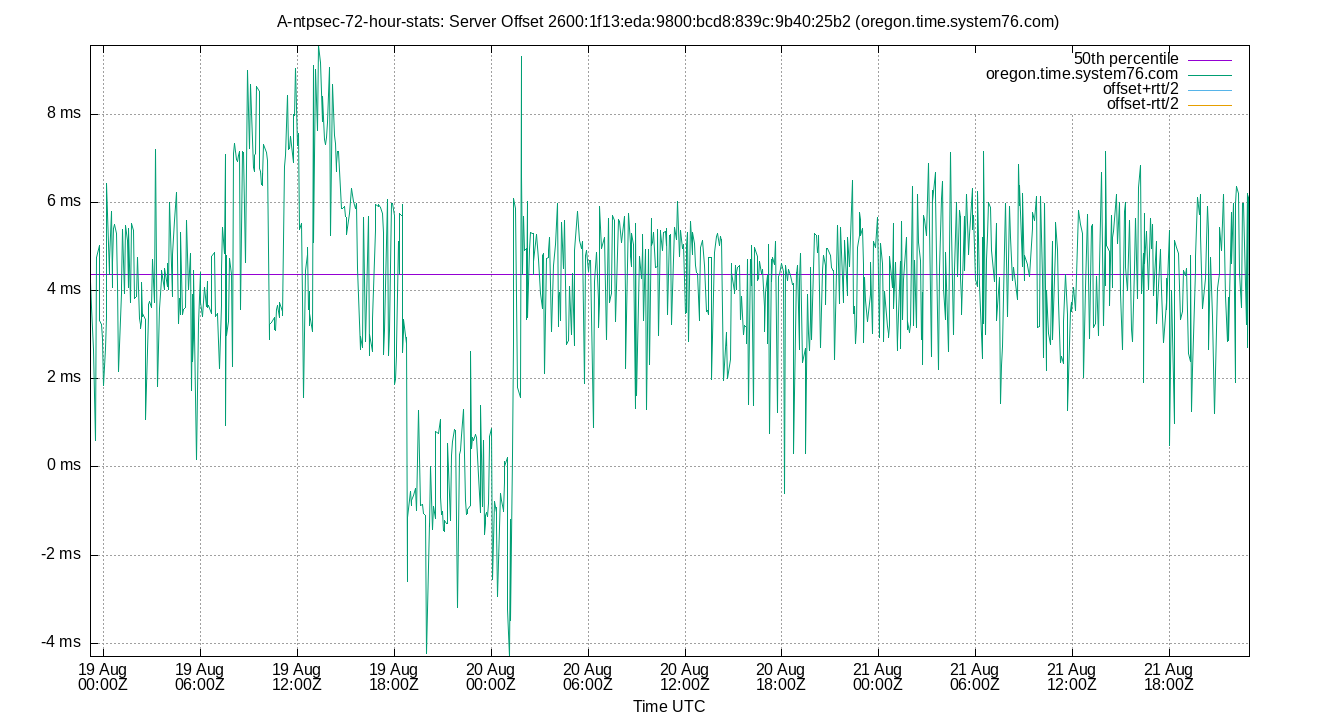

The offset of all refclocks and servers. This can be useful to see if offset changes are happening in a single clock or all clocks together.

Clock Offset is field 5 in the peerstats log file.

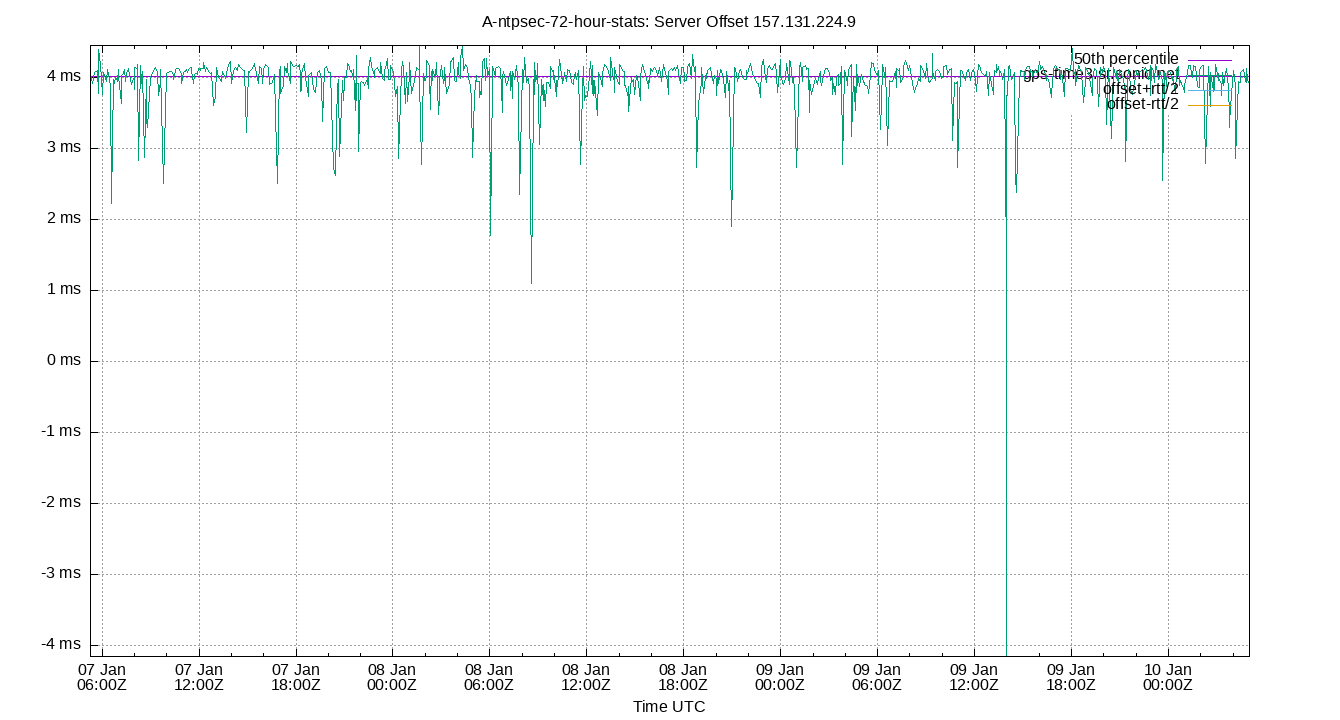

Server Offset 157.131.224.9

peer offset 157.131.224.9 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 157.131.224.9 -4.154 2.503 3.374 4.009 4.209 4.287 4.449 0.835 1.784 0.427 3.935 ms 569.5 4802

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 173.11.101.155

peer offset 173.11.101.155 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 173.11.101.155 -4.061 -2.892 -2.206 0.034 2.726 4.206 6.936 4.931 7.098 1.469 0.038 ms -3.319 8.545

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 192.12.19.20

peer offset 192.12.19.20 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 192.12.19.20 -2.491 -1.704 2.307 4.029 5.450 6.225 6.451 3.143 7.929 1.188 3.951 ms 16.95 51.01

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

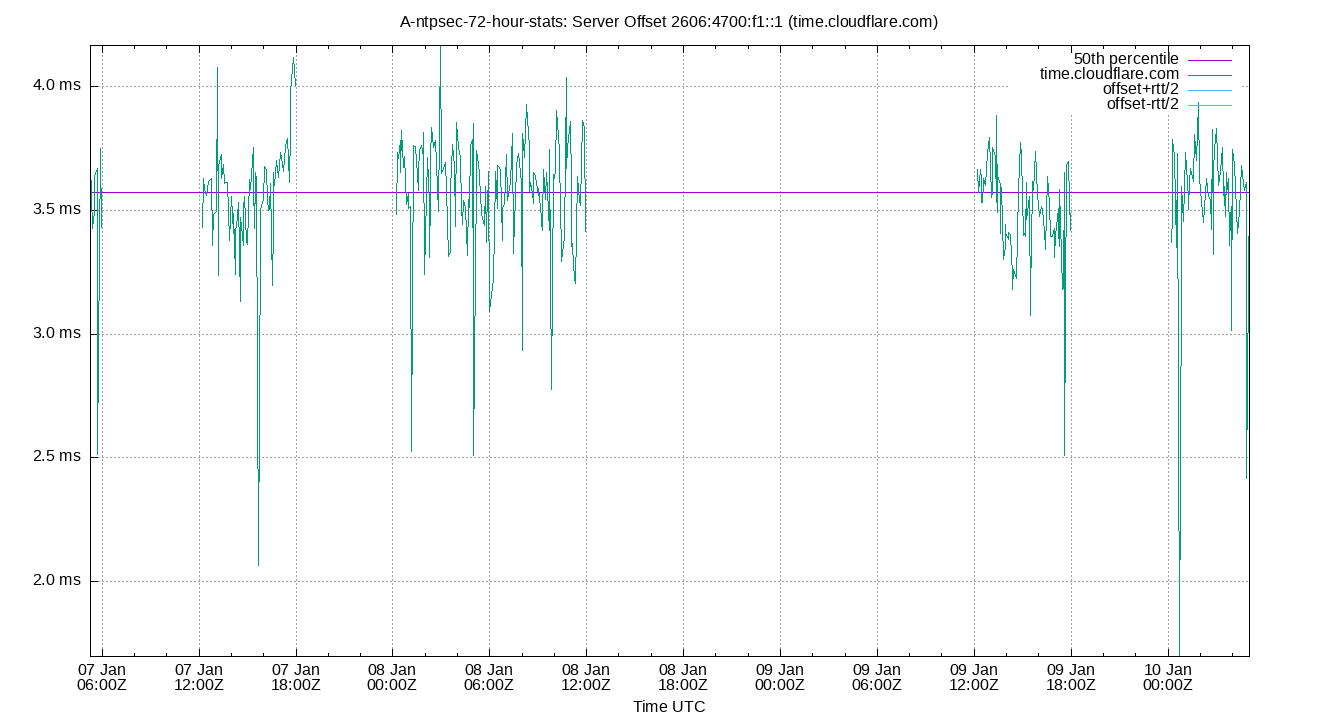

Server Offset 2606:4700:f1::1 (time.cloudflare.com)

peer offset 2606:4700:f1::1 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2606:4700:f1::1 (time.cloudflare.com) 1.907 2.333 3.204 3.567 3.842 4.076 4.326 0.638 1.744 0.260 3.538 ms 2043 2.618e+04

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

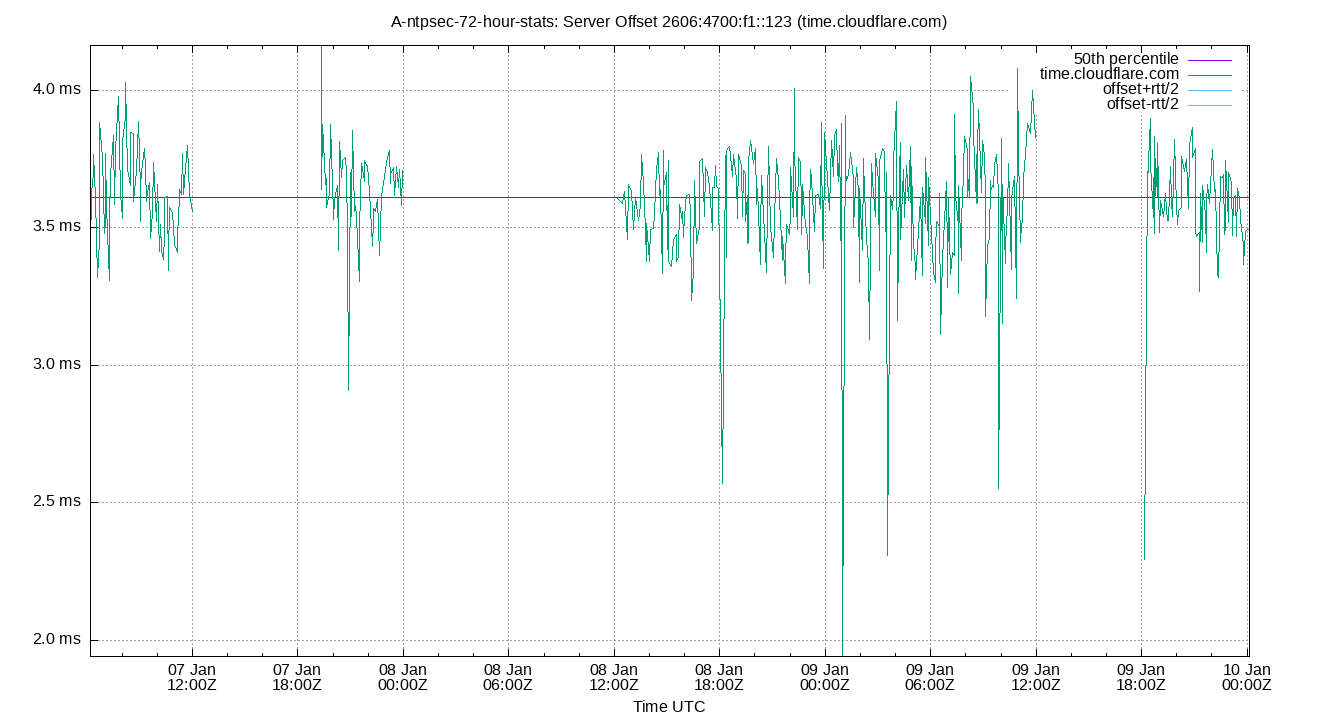

Server Offset 2606:4700:f1::123 (time.cloudflare.com)

peer offset 2606:4700:f1::123 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2606:4700:f1::123 (time.cloudflare.com) 1.941 2.909 3.311 3.613 3.853 4.006 4.163 0.541 1.097 0.208 3.590 ms 4325 7.091e+04

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



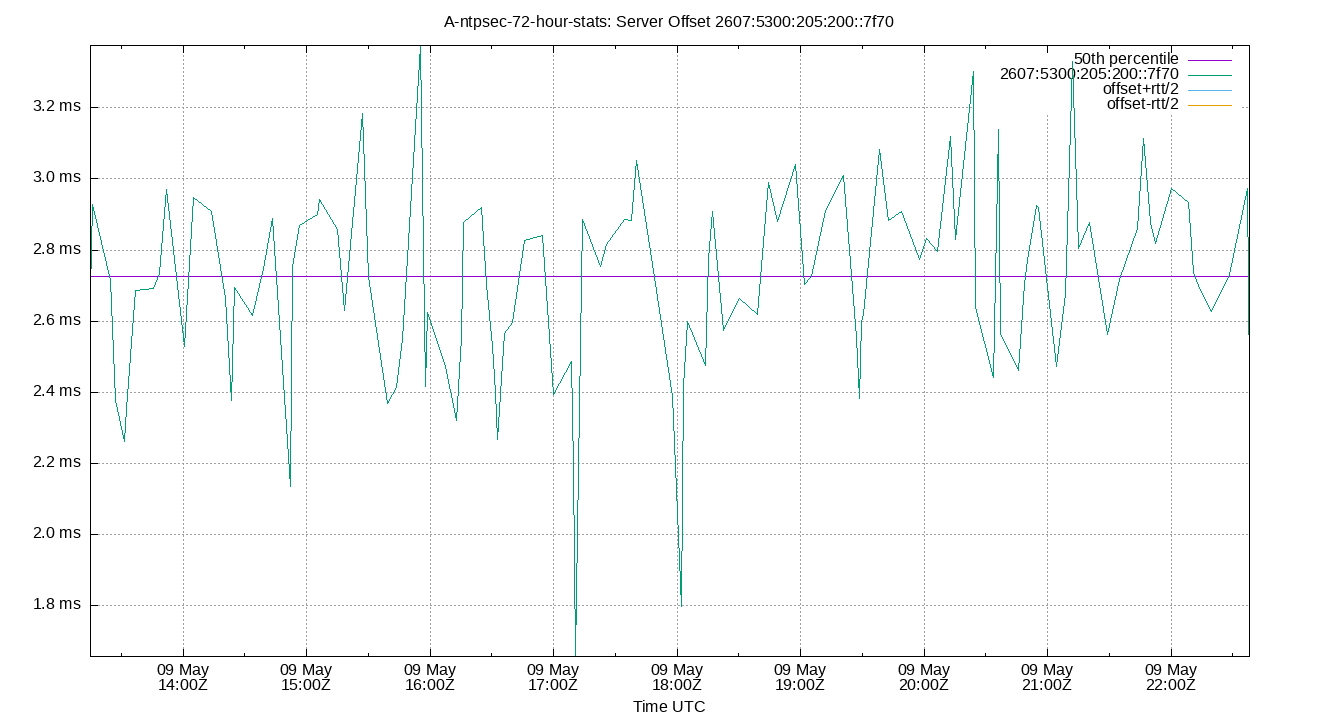

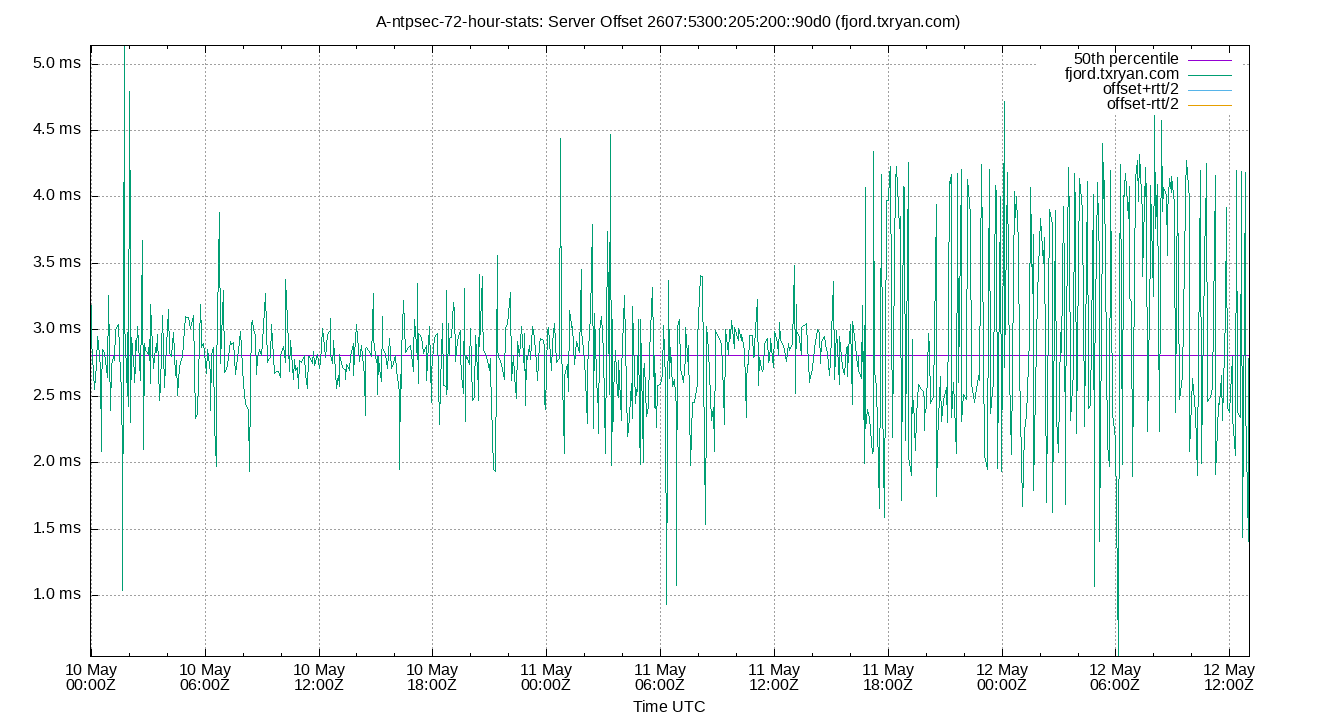

Server Offset 2607:5300:205:200::2502 (zero.txryan.com)

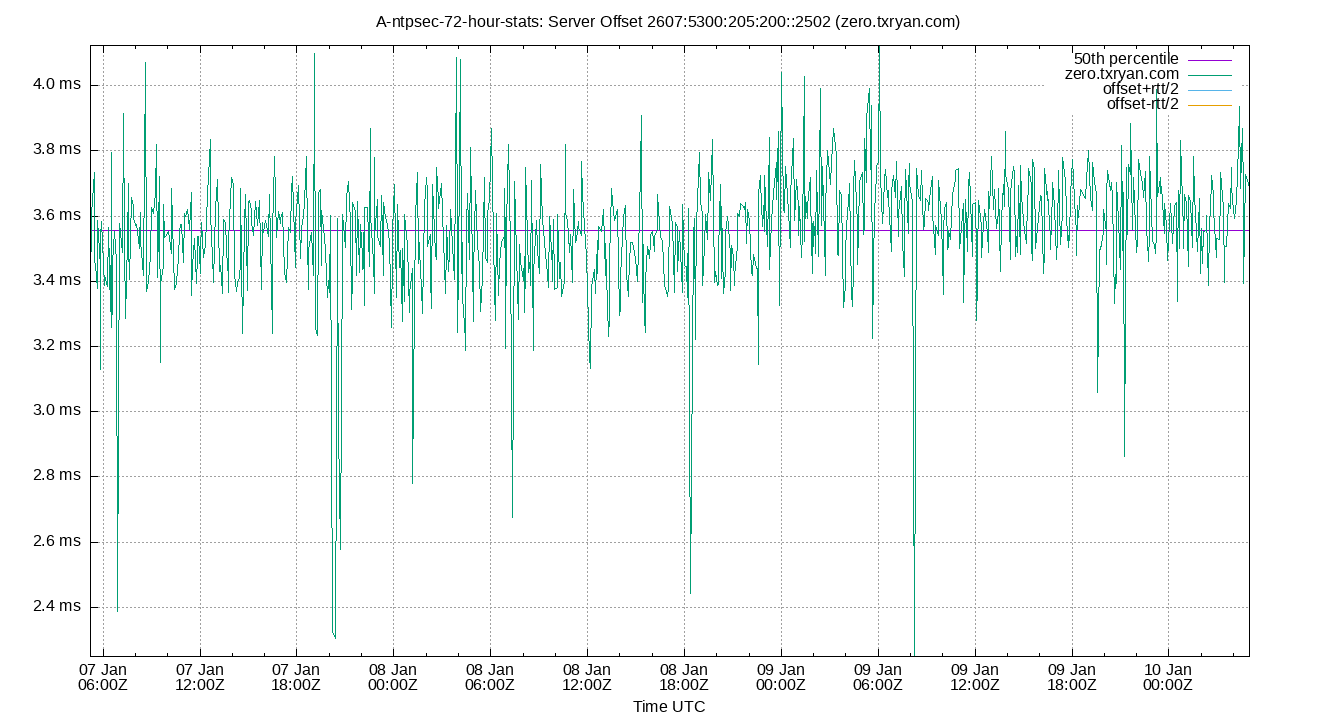

peer offset 2607:5300:205:200::2502 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2607:5300:205:200::2502 (zero.txryan.com) 1.790 2.653 3.118 3.513 3.760 3.990 4.123 0.642 1.337 0.230 3.485 ms 2864 4.101e+04

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu)

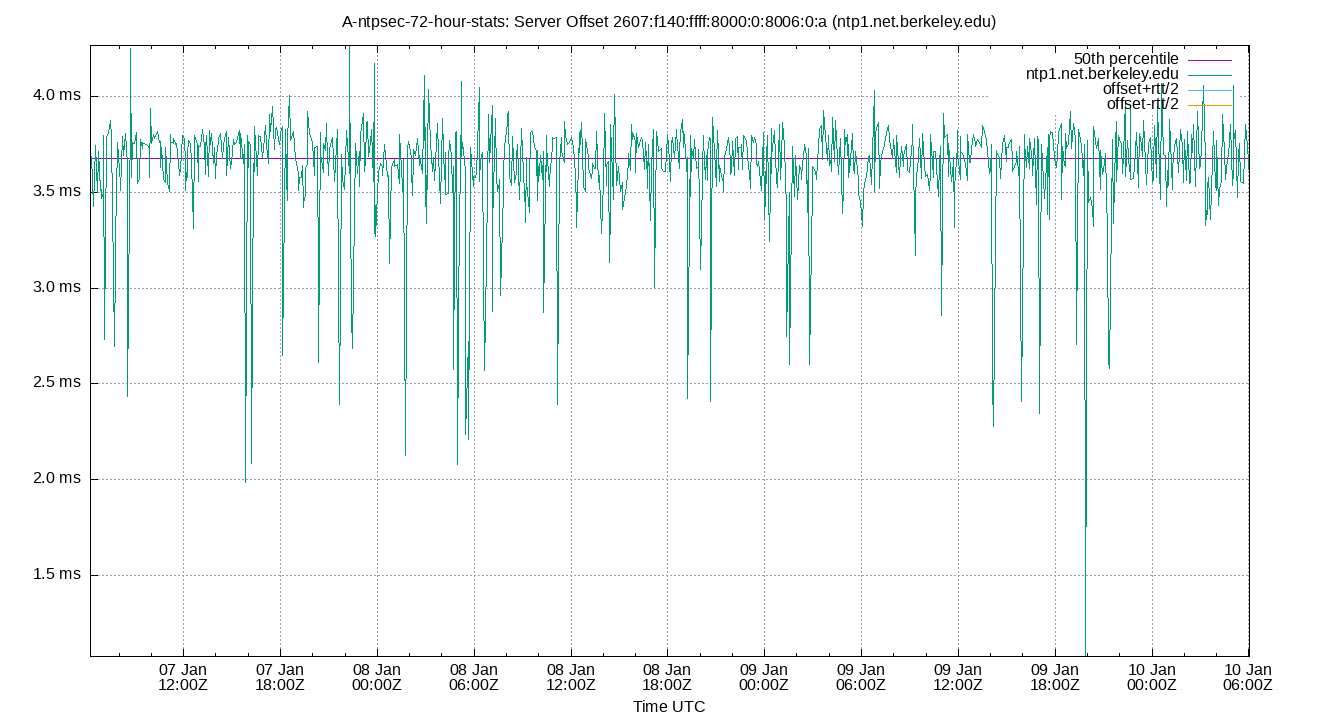

peer offset 2607:f140:ffff:8000:0:8006:0:a plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu) 1.982 2.328 3.131 3.678 3.862 4.009 4.268 0.731 1.682 0.284 3.623 ms 1660 1.985e+04

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 50.116.42.84

peer offset 50.116.42.84 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 50.116.42.84 1.958 2.518 2.938 4.812 5.324 5.479 5.942 2.386 2.961 0.875 4.362 ms 74.69 340.6

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 52.10.183.132

peer offset 52.10.183.132 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 52.10.183.132 1.001 2.523 2.839 3.702 4.043 4.233 4.468 1.205 1.710 0.363 3.621 ms 751.1 6959

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 66.220.9.122

peer offset 66.220.9.122 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 66.220.9.122 1.161 1.854 2.512 3.483 4.224 4.547 4.805 1.713 2.693 0.524 3.453 ms 191.2 1157

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset SHM(0)

peer offset SHM(0) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset SHM(0) -102.922 -102.110 -101.034 -97.503 -95.202 -94.527 -93.755 5.832 7.583 1.681 -97.639 ms -2.065e+05 1.222e+07

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset SHM(1)

peer offset SHM(1) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset SHM(1) -3.571 -2.296 -1.343 0.060 1.004 1.428 3.723 2.347 3.724 0.713 -0.010 µs -4.921 15.4

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



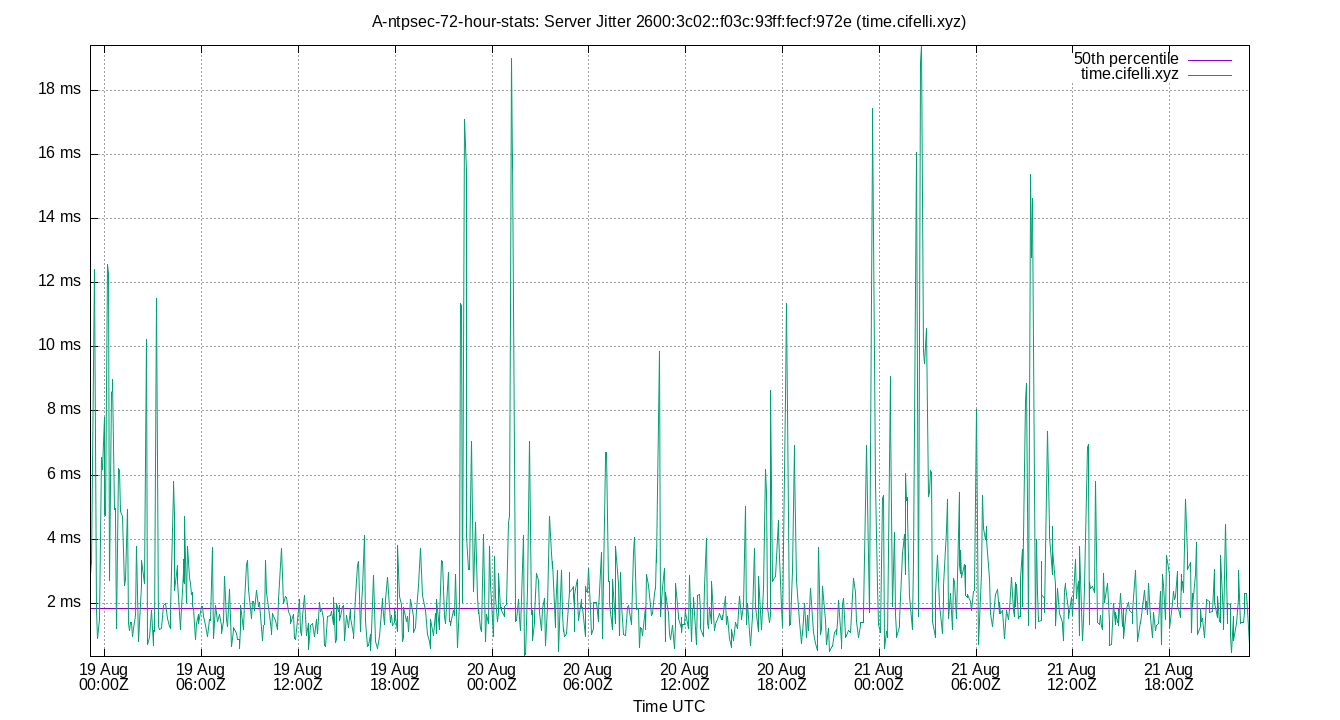

Server Jitters

peer jitters plot

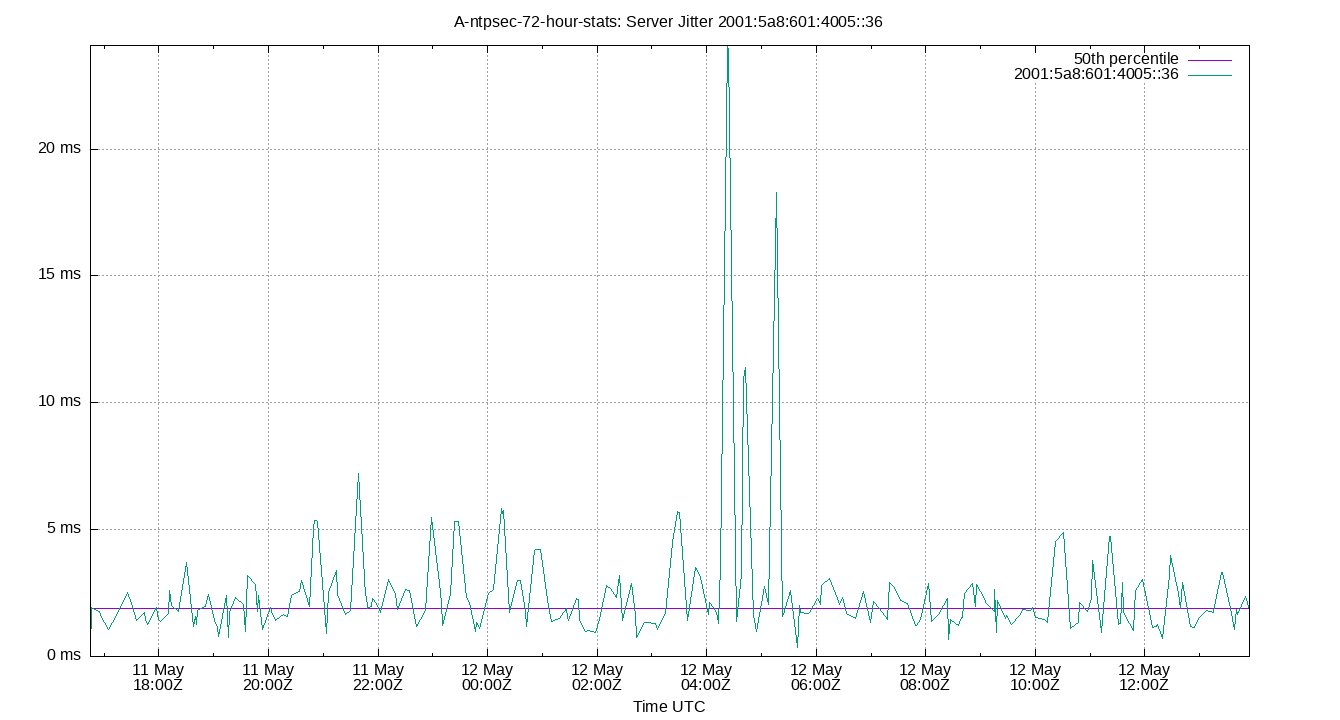

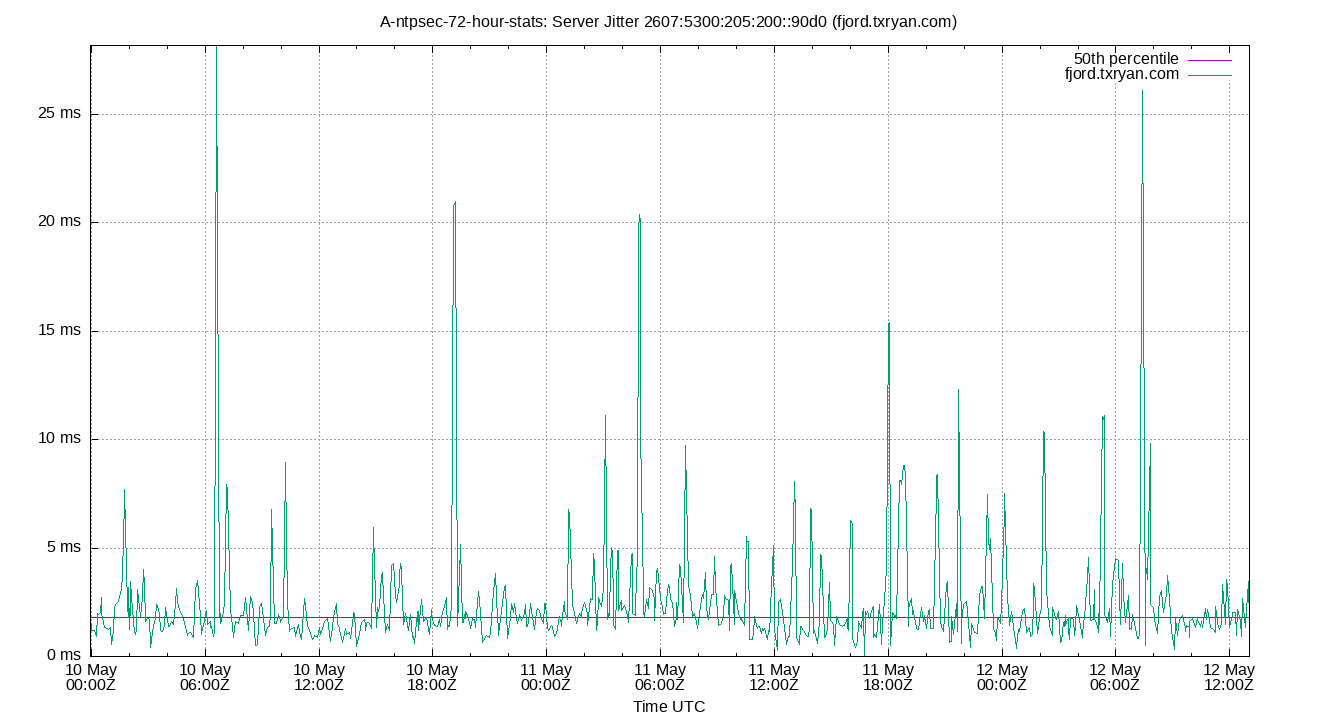

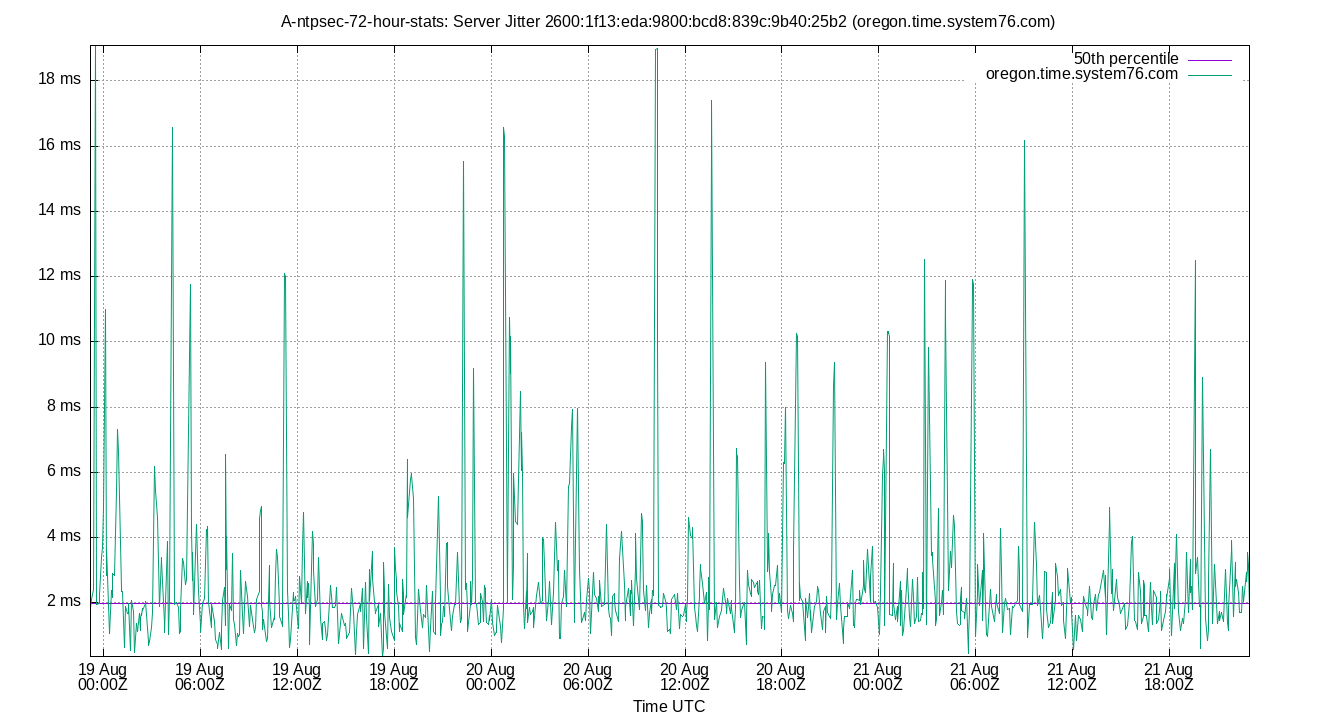

The RMS Jitter of all refclocks and servers. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

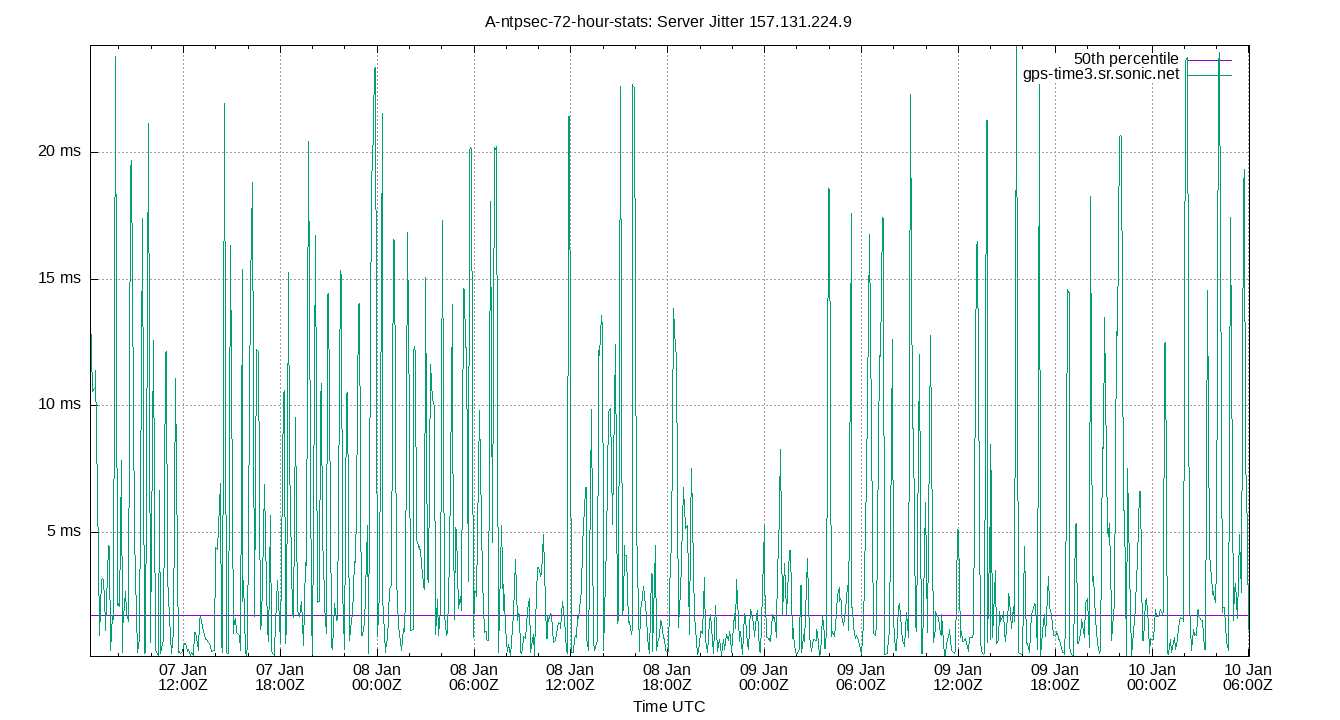

Server Jitter 157.131.224.9

peer jitter 157.131.224.9 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 157.131.224.9 0.114 0.165 0.249 1.609 18.750 22.611 24.218 18.501 22.446 5.852 4.349 ms 0.9519 3.518

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 173.11.101.155

peer jitter 173.11.101.155 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 173.11.101.155 0.972 1.215 1.582 3.346 17.532 23.937 25.001 15.950 22.723 5.061 5.372 ms 2.27 7.232

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 192.12.19.20

peer jitter 192.12.19.20 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 192.12.19.20 0.059 0.156 0.231 1.460 19.394 23.552 25.552 19.163 23.397 6.046 4.250 ms 0.9035 3.538

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2606:4700:f1::1 (time.cloudflare.com)

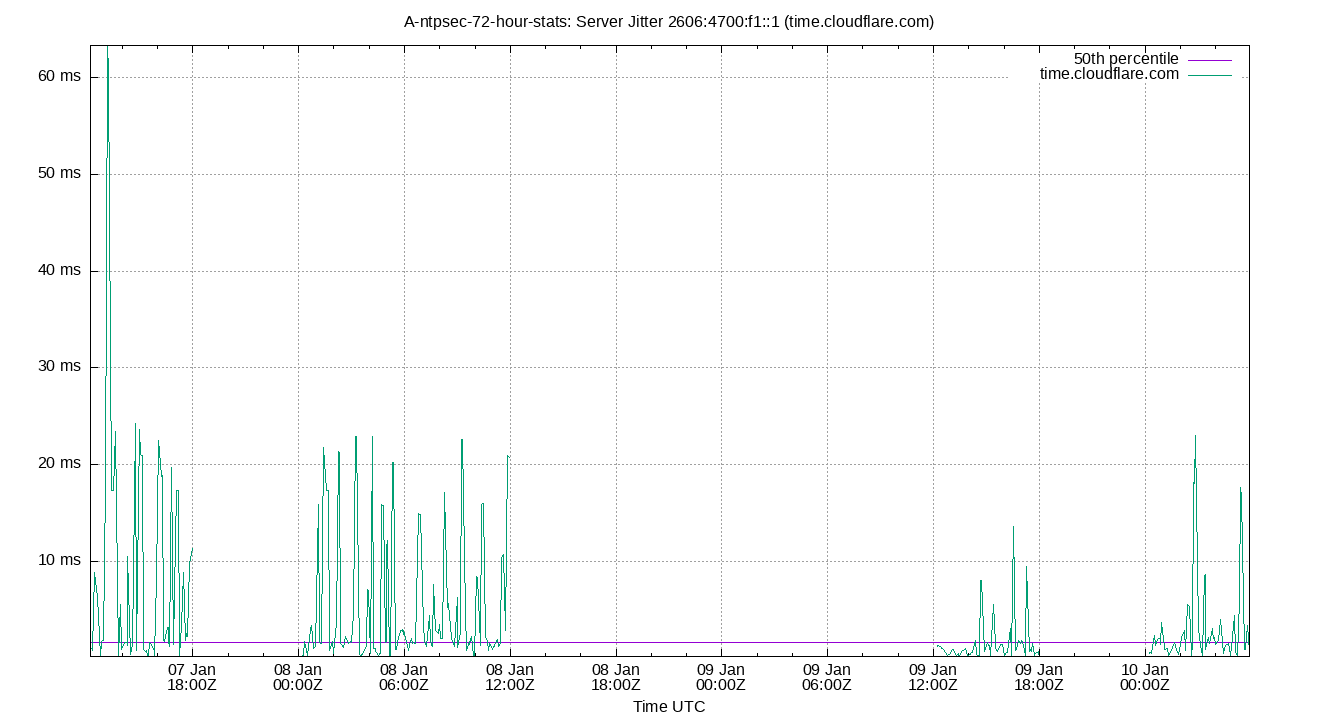

peer jitter 2606:4700:f1::1 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2606:4700:f1::1 (time.cloudflare.com) 0.147 0.204 0.252 1.607 21.209 24.215 63.339 20.957 24.011 8.422 4.900 ms 2.293 16.3

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2606:4700:f1::123 (time.cloudflare.com)

peer jitter 2606:4700:f1::123 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2606:4700:f1::123 (time.cloudflare.com) 0.142 0.180 0.242 1.497 16.562 21.687 26.681 16.320 21.507 4.917 3.390 ms 1.506 6.037

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

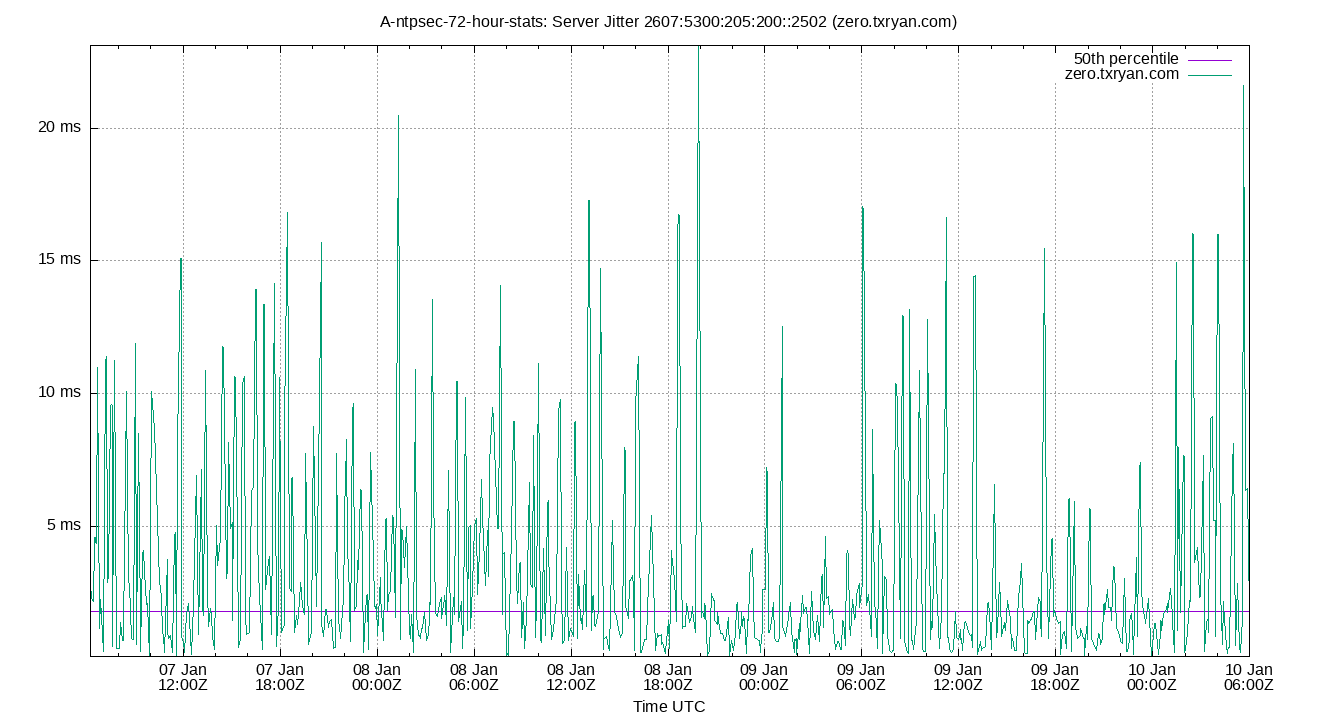

Server Jitter 2607:5300:205:200::2502 (zero.txryan.com)

peer jitter 2607:5300:205:200::2502 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2607:5300:205:200::2502 (zero.txryan.com) 0.104 0.182 0.272 1.841 12.773 16.820 23.113 12.500 16.638 3.966 3.470 ms 1.47 5.317

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

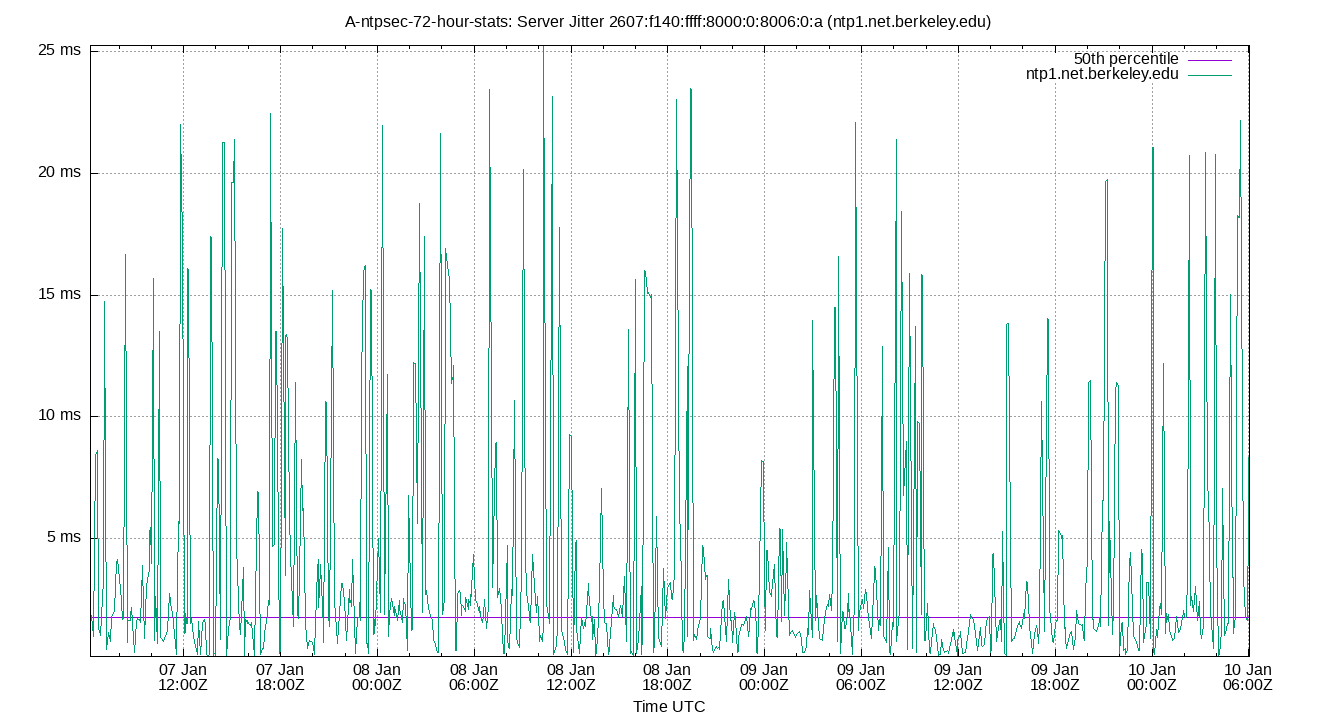

Server Jitter 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu)

peer jitter 2607:f140:ffff:8000:0:8006:0:a plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu) 0.113 0.162 0.244 1.725 16.928 23.175 25.266 16.684 23.013 5.418 3.966 ms 1.263 4.661

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 50.116.42.84

peer jitter 50.116.42.84 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 50.116.42.84 0.099 0.179 0.259 1.473 16.639 19.415 31.116 16.381 19.236 5.175 3.774 ms 1.178 4.989

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 52.10.183.132

peer jitter 52.10.183.132 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 52.10.183.132 0.149 0.195 0.256 1.404 17.986 23.100 25.940 17.731 22.905 5.586 4.024 ms 0.9848 3.822

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 66.220.9.122

peer jitter 66.220.9.122 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 66.220.9.122 0.098 0.163 0.271 1.438 21.248 23.272 25.139 20.977 23.109 6.300 4.334 ms 0.8743 3.39

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter SHM(0)

peer jitter SHM(0) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter SHM(0) 0.122 0.209 0.279 0.555 1.228 1.694 2.711 0.949 1.484 0.313 0.633 ms 5.686 20.25

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter SHM(1)

peer jitter SHM(1) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter SHM(1) 0.118 0.253 0.359 0.806 1.806 2.490 5.046 1.447 2.237 0.464 0.904 µs 5.127 17.72

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Summary


Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -586.044 -580.246 -539.169 -294.327 -191.666 -185.547 -182.266 347.503 394.699 103.496 -315.642 ppb -79.39 383.5
Local Clock Time Offset -3.570 -2.295 -1.342 0.059 1.003 1.427 3.722 2.345 3.722 0.712 -0.010 µs -4.923 15.42
Local RMS Frequency Jitter 110.000 166.000 197.000 323.000 509.000 587.000 1,262.000 312.000 421.000 97.156 334.224 10e-12 22.61 83.37
Local RMS Time Jitter 0.236 0.418 0.516 0.869 1.404 1.654 2.993 0.888 1.236 0.275 0.903 µs 19.38 68.1
Server Jitter 157.131.224.9 0.114 0.165 0.249 1.609 18.750 22.611 24.218 18.501 22.446 5.852 4.349 ms 0.9519 3.518
Server Jitter 173.11.101.155 0.972 1.215 1.582 3.346 17.532 23.937 25.001 15.950 22.723 5.061 5.372 ms 2.27 7.232
Server Jitter 192.12.19.20 0.059 0.156 0.231 1.460 19.394 23.552 25.552 19.163 23.397 6.046 4.250 ms 0.9035 3.538
Server Jitter 2606:4700:f1::1 (time.cloudflare.com) 0.147 0.204 0.252 1.607 21.209 24.215 63.339 20.957 24.011 8.422 4.900 ms 2.293 16.3
Server Jitter 2606:4700:f1::123 (time.cloudflare.com) 0.142 0.180 0.242 1.497 16.562 21.687 26.681 16.320 21.507 4.917 3.390 ms 1.506 6.037
Server Jitter 2607:5300:205:200::2502 (zero.txryan.com) 0.104 0.182 0.272 1.841 12.773 16.820 23.113 12.500 16.638 3.966 3.470 ms 1.47 5.317
Server Jitter 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu) 0.113 0.162 0.244 1.725 16.928 23.175 25.266 16.684 23.013 5.418 3.966 ms 1.263 4.661
Server Jitter 50.116.42.84 0.099 0.179 0.259 1.473 16.639 19.415 31.116 16.381 19.236 5.175 3.774 ms 1.178 4.989
Server Jitter 52.10.183.132 0.149 0.195 0.256 1.404 17.986 23.100 25.940 17.731 22.905 5.586 4.024 ms 0.9848 3.822
Server Jitter 66.220.9.122 0.098 0.163 0.271 1.438 21.248 23.272 25.139 20.977 23.109 6.300 4.334 ms 0.8743 3.39
Server Jitter SHM(0) 0.122 0.209 0.279 0.555 1.228 1.694 2.711 0.949 1.484 0.313 0.633 ms 5.686 20.25
Server Jitter SHM(1) 0.118 0.253 0.359 0.806 1.806 2.490 5.046 1.447 2.237 0.464 0.904 µs 5.127 17.72
Server Offset 157.131.224.9 -4.154 2.503 3.374 4.009 4.209 4.287 4.449 0.835 1.784 0.427 3.935 ms 569.5 4802
Server Offset 173.11.101.155 -4.061 -2.892 -2.206 0.034 2.726 4.206 6.936 4.931 7.098 1.469 0.038 ms -3.319 8.545
Server Offset 192.12.19.20 -2.491 -1.704 2.307 4.029 5.450 6.225 6.451 3.143 7.929 1.188 3.951 ms 16.95 51.01
Server Offset 2606:4700:f1::1 (time.cloudflare.com) 1.907 2.333 3.204 3.567 3.842 4.076 4.326 0.638 1.744 0.260 3.538 ms 2043 2.618e+04
Server Offset 2606:4700:f1::123 (time.cloudflare.com) 1.941 2.909 3.311 3.613 3.853 4.006 4.163 0.541 1.097 0.208 3.590 ms 4325 7.091e+04
Server Offset 2607:5300:205:200::2502 (zero.txryan.com) 1.790 2.653 3.118 3.513 3.760 3.990 4.123 0.642 1.337 0.230 3.485 ms 2864 4.101e+04
Server Offset 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu) 1.982 2.328 3.131 3.678 3.862 4.009 4.268 0.731 1.682 0.284 3.623 ms 1660 1.985e+04
Server Offset 50.116.42.84 1.958 2.518 2.938 4.812 5.324 5.479 5.942 2.386 2.961 0.875 4.362 ms 74.69 340.6
Server Offset 52.10.183.132 1.001 2.523 2.839 3.702 4.043 4.233 4.468 1.205 1.710 0.363 3.621 ms 751.1 6959
Server Offset 66.220.9.122 1.161 1.854 2.512 3.483 4.224 4.547 4.805 1.713 2.693 0.524 3.453 ms 191.2 1157
Server Offset SHM(0) -102.922 -102.110 -101.034 -97.503 -95.202 -94.527 -93.755 5.832 7.583 1.681 -97.639 ms -2.065e+05 1.222e+07
Server Offset SHM(1) -3.571 -2.296 -1.343 0.060 1.004 1.428 3.723 2.347 3.724 0.713 -0.010 µs -4.921 15.4
TDOP 0.490 0.510 0.560 0.790 1.190 1.480 1.870 0.630 0.970 0.204 0.831 39.47 163.4
Temp ZONE0 43.470 43.470 44.008 46.160 47.236 47.774 47.774 3.228 4.304 1.030 46.001 °C
nSats 7.000 8.000 8.000 10.000 12.000 12.000 12.000 4.000 4.000 1.174 9.992 nSat 446.7 3530
Summary as CSV file


Glossary:

frequency offset:
The difference between the ntpd calculated frequency and the local system clock frequency (usually in parts per million, ppm)
jitter, dispersion:
The short term change in a value. NTP measures Local Time Jitter, Refclock Jitter, and Server Jitter in seconds. Local Frequency Jitter is in ppm or ppb.
kurtosis, Kurt:
The kurtosis of a random variable X is the fourth standardized moment and is a dimension-less ratio. ntpviz uses the Pearson's moment coefficient of kurtosis. A normal distribution has a kurtosis of three. NIST describes a kurtosis over three as "heavy tailed" and one under three as "light tailed".
ms, millisecond:
One thousandth of a second = 0.001 seconds, 1e-3 seconds
mu, mean:
The arithmetic mean: the sum of all the values divided by the number of values. The formula for mu is: "mu = (∑xi) / N". Where xi denotes the data points and N is the number of data points.
ns, nanosecond:
One billionth of a second, also one thousandth of a microsecond, 0.000000001 seconds and 1e-9 seconds.
percentile:
The value below which a given percentage of values fall.
ppb, parts per billion:
Ratio between two values. These following are all the same: 1 ppb, one in one billion, 1/1,000,000,000, 0.000,000,001, 1e-9 and 0.000,000,1%
ppm, parts per million:
Ratio between two values. These following are all the same: 1 ppm, one in one million, 1/1,000,000, 0.000,001, and 0.000,1%
‰, parts per thousand:
Ratio between two values. These following are all the same: 1 ‰. one in one thousand, 1/1,000, 0.001, and 0.1%
refclock:
Reference clock, a local GPS module or other local source of time.
remote clock:
Any clock reached over the network, LAN or WAN. Also called a peer or server.
time offset:
The difference between the ntpd calculated time and the local system clock's time. Also called phase offset.
σ, sigma:
Sigma denotes the standard deviation (SD) and is centered on the arithmetic mean of the data set. The SD is simply the square root of the variance of the data set. Two sigma is simply twice the standard deviation. Three sigma is three times sigma. Smaller is better.
The formula for sigma is: "σ = √[ ∑(xi-mu)^2 / N ]". Where xi denotes the data points and N is the number of data points.
skewness, Skew:
The skewness of a random variable X is the third standardized moment and is a dimension-less ratio. ntpviz uses the Pearson's moment coefficient of skewness. Wikipedia describes it best: "The qualitative interpretation of the skew is complicated and unintuitive."
A normal distribution has a skewness of zero.
upstream clock:
Any server or reference clock used as a source of time.
µs, us, microsecond:
One millionth of a second, also one thousandth of a millisecond, 0.000,001 seconds, and 1e-6 seconds.



This page autogenerated by ntpviz, part of the NTPsec project
html 5    Valid CSS!
