A-ntpsec-24-hour-stats

Report generated: Wed Jan 7 08:08:33 2026 UTC
Start Time: Tue Jan 6 08:08:33 2026 UTC
End Time: Wed Jan 7 08:08:33 2026 UTC
Report published: Wed Jan 07 12:08:57 AM 2026 PST
Report Period: 1.0 days

Local Clock Time/Frequency Offsets

local offset plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Time Offset -3.540 -2.201 -1.158 0.066 0.967 1.357 2.416 2.125 3.558 0.661 0.010 µs -4.776 15.37
Local Clock Frequency Offset -442.032 -440.491 -433.243 -295.532 -186.035 -184.692 -182.266 247.208 255.799 85.228 -293.548 ppb -101.3 514.1

The time and frequency offsets between the ntpd calculated time and the local system clock. Showing frequency offset (red, in parts per million, scale on right) and the time offset (blue, in μs, scale on left). Quick changes in time offset will lead to larger frequency offsets.

These are fields 3 (time) and 4 (frequency) from the loopstats log file.



Local RMS Time Jitter

local jitter plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Time Jitter 0.294 0.395 0.476 0.799 1.354 1.615 1.944 0.878 1.220 0.270 0.842 µs 16.7 57.33

The RMS Jitter of the local clock offset. In other words, how fast the local clock offset is changing.

Lower is better. An ideal system would be a horizontal line at 0μs.

RMS jitter is field 5 in the loopstats log file.



Local RMS Frequency Jitter

local stability plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Frequency Jitter 110.000 155.000 183.000 296.000 482.000 560.000 688.000 299.000 405.000 92.228 309.607 10e-12 20.84 73.68

The RMS Frequency Jitter (aka wander) of the local clock's frequency. In other words, how fast the local clock changes frequency.

Lower is better. An ideal clock would be a horizontal line at 0ppm.

RMS Frequency Jitter is field 6 in the loopstats log file.



Local Clock Time Offset Histogram

local offset histogram plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Offset -3.540 -2.201 -1.158 0.066 0.967 1.357 2.416 2.125 3.558 0.661 0.010 µs -4.776 15.37

The clock offsets of the local clock as a histogram.

The Local Clock Offset is field 3 from the loopstats log file.



Local Temperatures

local temps plot

Local temperatures. These will be site-specific depending upon what temperature sensors you collect data from. Temperature changes affect the local clock crystal frequency and stability. The math of how temperature changes frequency is complex, and also depends on crystal aging. So there is no easy way to correct for it in software. This is the single most important component of frequency drift.

The Local Temperatures are from field 3 from the tempstats log file.



Local Frequency/Temp

local freq temps plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -442.032 -440.491 -433.243 -295.532 -186.035 -184.692 -182.266 247.208 255.799 85.228 -293.548 ppb -101.3 514.1
Temp ZONE0 44.546 44.546 45.084 46.160 47.236 47.774 47.774 2.152 3.228 0.897 46.219 °C

The frequency offsets and temperatures. Showing frequency offset (red, in parts per million, scale on right) and the temperatures.

These are field 4 (frequency) from the loopstats log file, and field 3 from the tempstats log file.



Local GPS

local gps plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
nSats 7.000 8.000 8.000 10.000 12.000 12.000 12.000 4.000 4.000 1.178 10.062 nSat 452 3583
TDOP 0.490 0.510 0.560 0.790 1.190 1.480 1.730 0.630 0.970 0.205 0.831 38.39 158.2

Local GPS. The Time Dilution of Precision (TDOP) is plotted in blue. The number of visible satellites (nSat) is plotted in red.

TDOP is field 3, and nSats is field 4, from the gpsd log file. The gpsd log file is created by the ntploggps program.

TDOP is a dimensionless error factor. Smaller numbers are better. TDOP ranges from 1 (ideal), 2 to 5 (good), to greater than 20 (poor). Some GNSS receivers report TDOP less than one which is theoretically impossible.



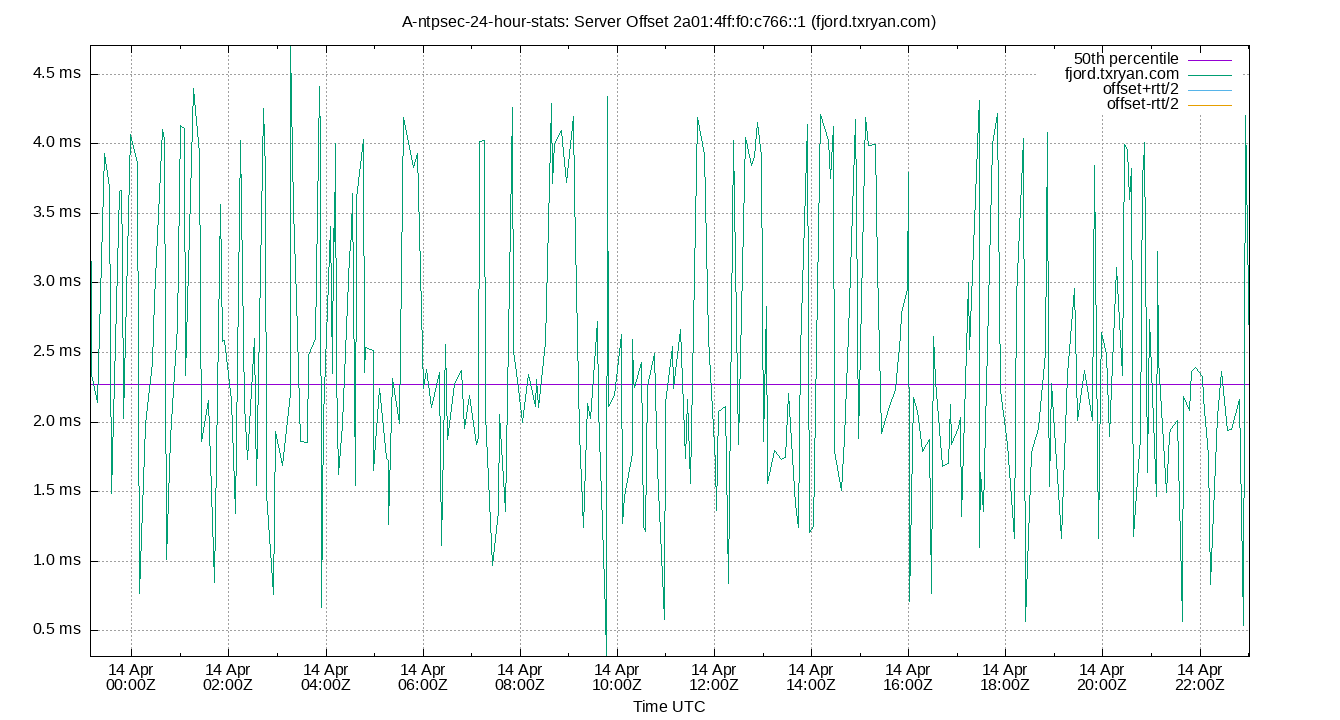

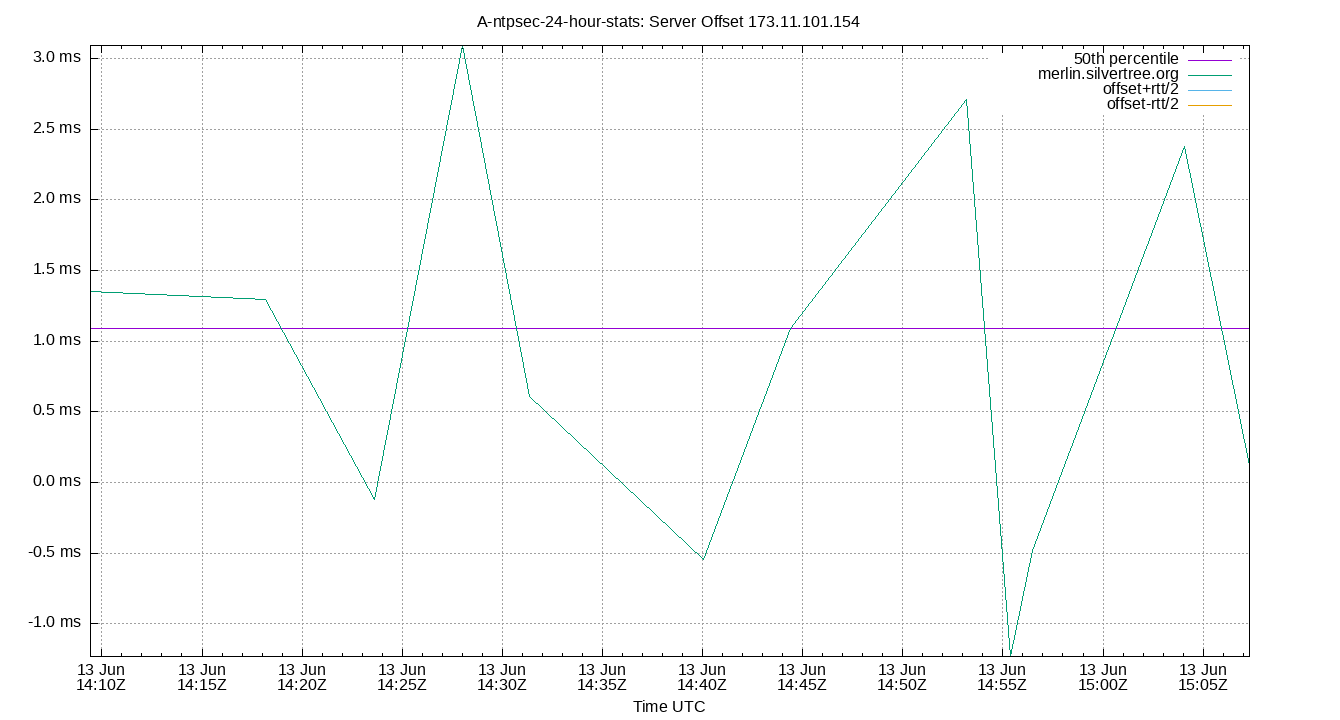

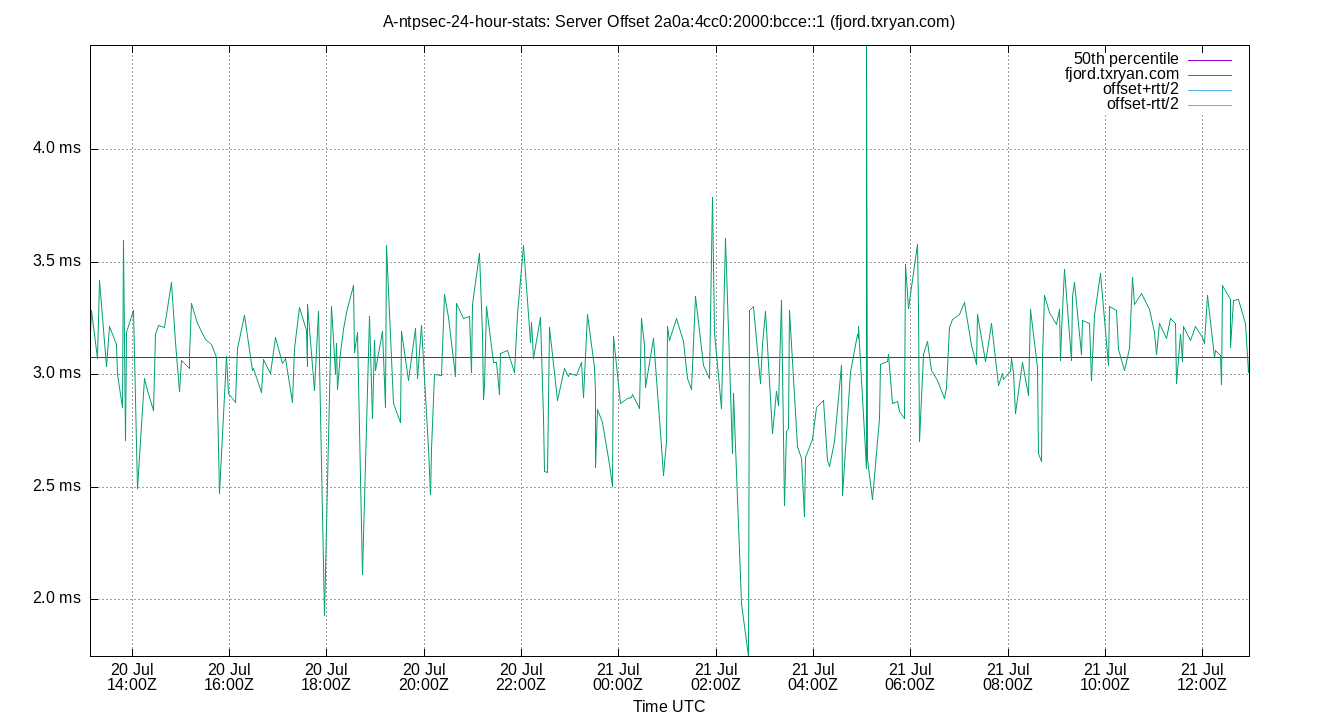

Server Offsets

peer offsets plot

The offset of all refclocks and servers. This can be useful to see if offset changes are happening in a single clock or all clocks together.

Clock Offset is field 5 in the peerstats log file.

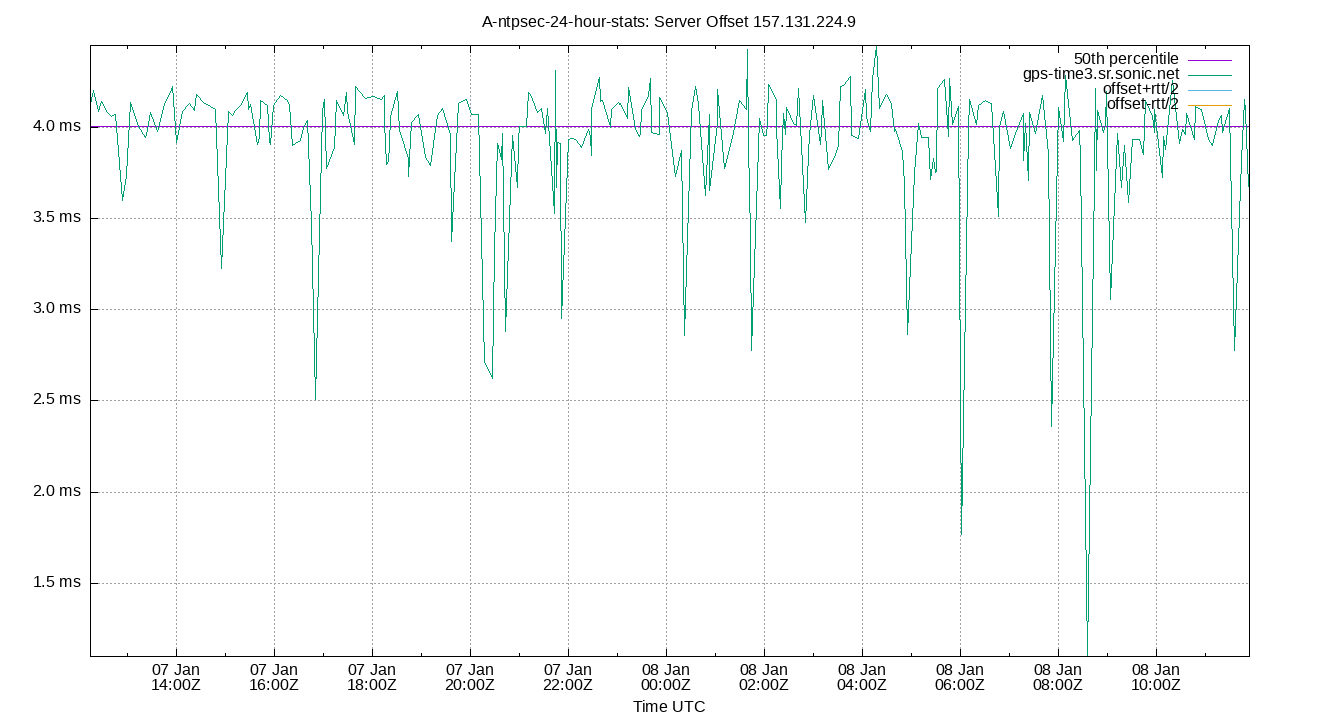

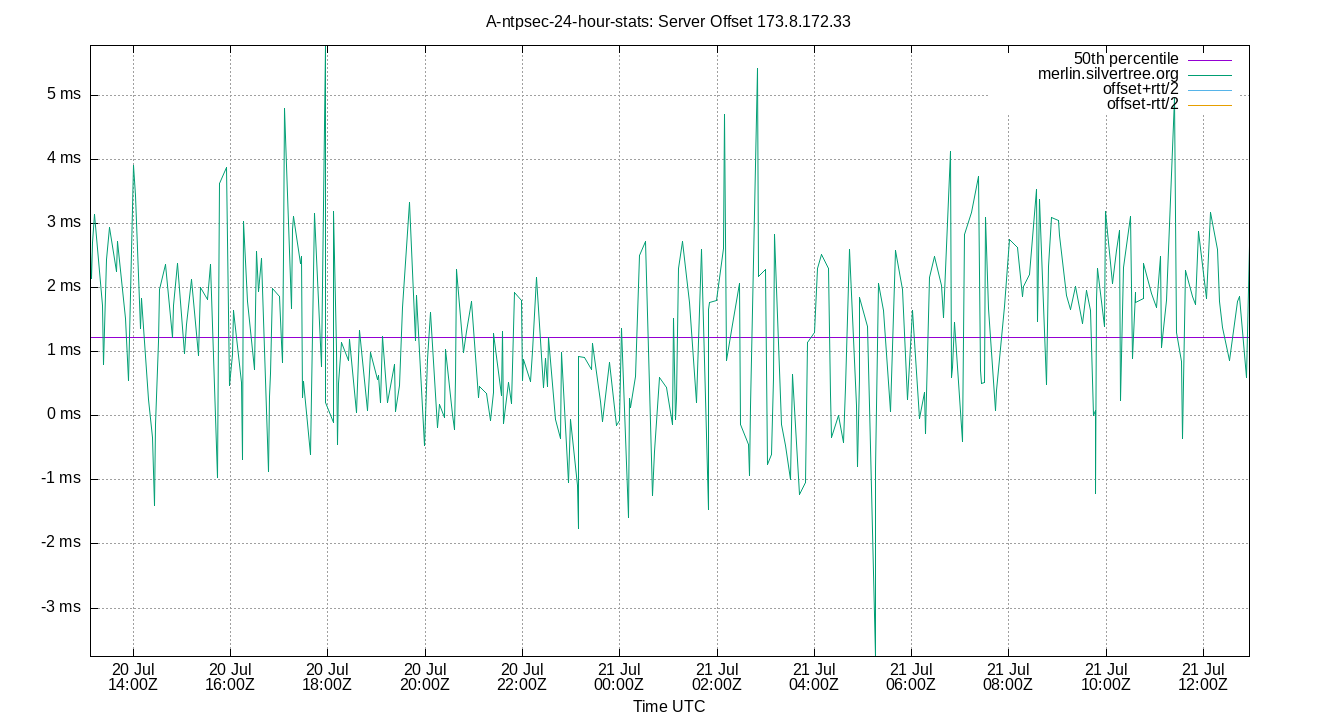

Server Offset 157.131.224.9

peer offset 157.131.224.9 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 157.131.224.9 2.229 2.459 3.637 4.022 4.199 4.296 4.413 0.562 1.837 0.283 3.957 ms 2223 2.925e+04

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 173.11.101.155

peer offset 173.11.101.155 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 173.11.101.155 -3.440 -2.831 -1.939 -0.076 2.485 3.076 4.133 4.425 5.907 1.309 0.020 ms -3.553 8.399

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 192.12.19.20

peer offset 192.12.19.20 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 192.12.19.20 2.456 2.725 3.434 4.081 5.659 6.165 6.197 2.225 3.439 0.649 4.223 ms 184 1121

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

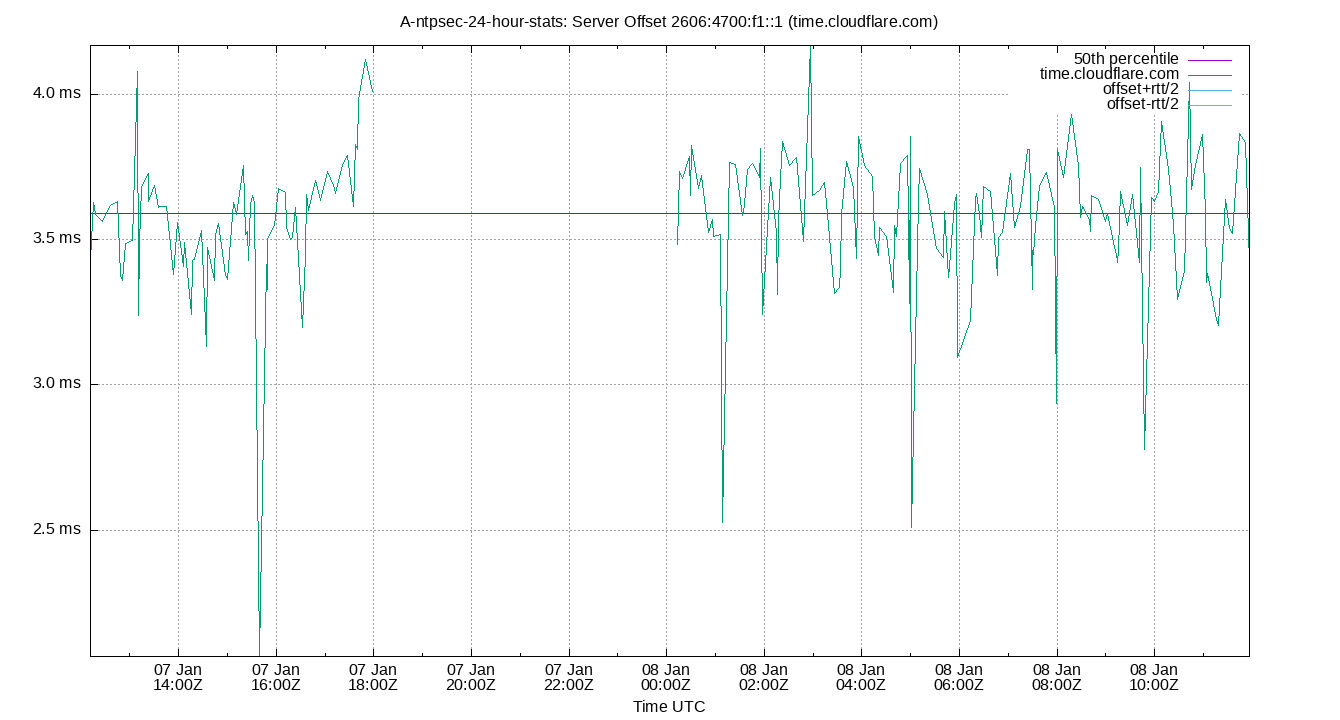

Server Offset 2606:4700:f1::1 (time.cloudflare.com)

peer offset 2606:4700:f1::1 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2606:4700:f1::1 (time.cloudflare.com) 1.907 2.158 3.058 3.559 3.867 4.124 4.326 0.809 1.965 0.316 3.513 ms 1060 1.096e+04

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



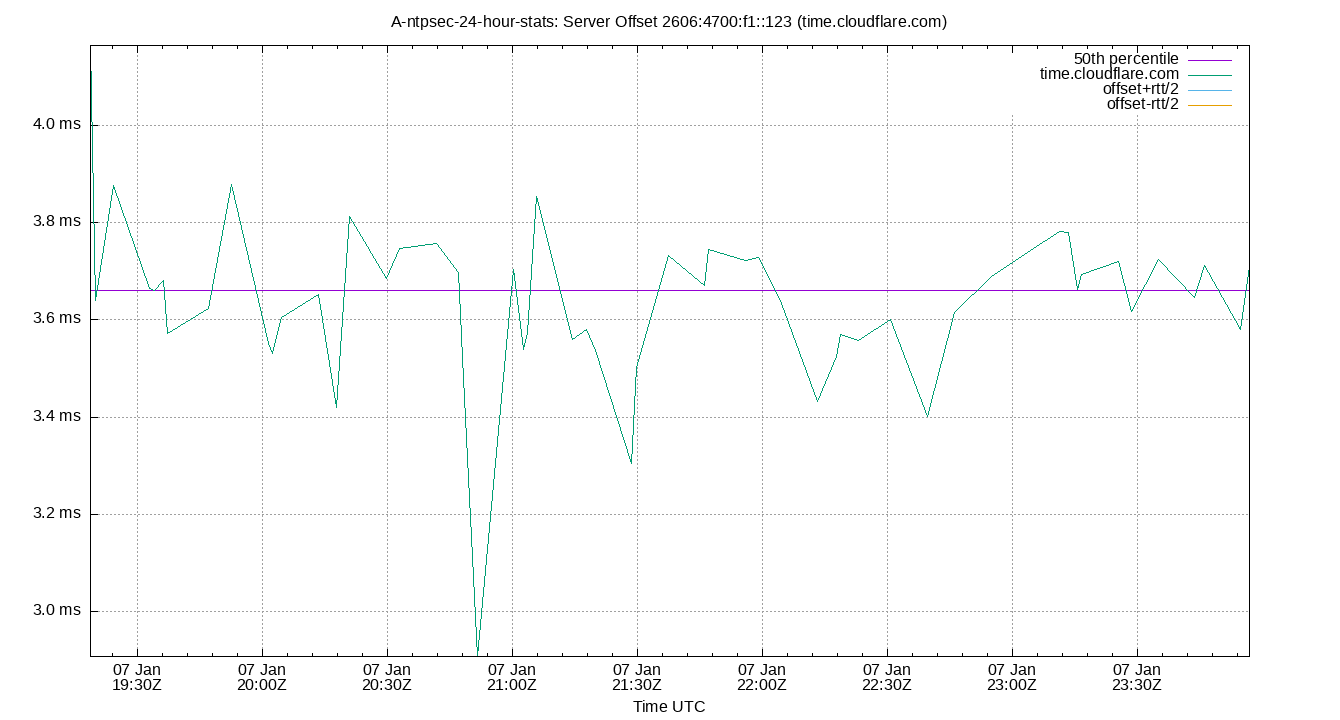

Server Offset 2606:4700:f1::123 (time.cloudflare.com)

peer offset 2606:4700:f1::123 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2606:4700:f1::123 (time.cloudflare.com) 3.276 3.309 3.376 3.606 3.884 3.988 4.135 0.508 0.679 0.154 3.613 ms 1.143e+04 2.586e+05

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 2607:5300:205:200::2502 (zero.txryan.com)

peer offset 2607:5300:205:200::2502 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2607:5300:205:200::2502 (zero.txryan.com) 1.790 2.329 2.946 3.303 3.580 3.735 3.916 0.634 1.406 0.225 3.267 ms 2524 3.469e+04

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu)

peer offset 2607:f140:ffff:8000:0:8006:0:a plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu) 2.269 2.353 3.213 3.655 3.849 3.932 3.979 0.637 1.579 0.268 3.613 ms 1972 2.496e+04

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 50.116.42.84

peer offset 50.116.42.84 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 50.116.42.84 1.715 1.862 3.678 5.062 5.380 5.520 5.595 1.702 3.657 0.586 4.898 ms 417 3178

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 52.10.183.132

peer offset 52.10.183.132 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 52.10.183.132 2.279 2.511 3.429 3.796 4.066 4.270 4.415 0.638 1.759 0.236 3.762 ms 3391 5.131e+04

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 66.220.9.122

peer offset 66.220.9.122 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 66.220.9.122 1.518 1.847 2.411 3.445 4.173 4.312 4.390 1.762 2.466 0.570 3.364 ms 131.9 712.9

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset SHM(0)

peer offset SHM(0) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset SHM(0) -102.466 -101.961 -100.985 -97.560 -95.196 -94.556 -93.542 5.789 7.405 1.676 -97.649 ms -2.083e+05 1.236e+07

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset SHM(1)

peer offset SHM(1) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset SHM(1) -3.541 -2.202 -1.159 0.067 0.968 1.358 2.417 2.127 3.560 0.662 0.010 µs -4.773 15.35

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



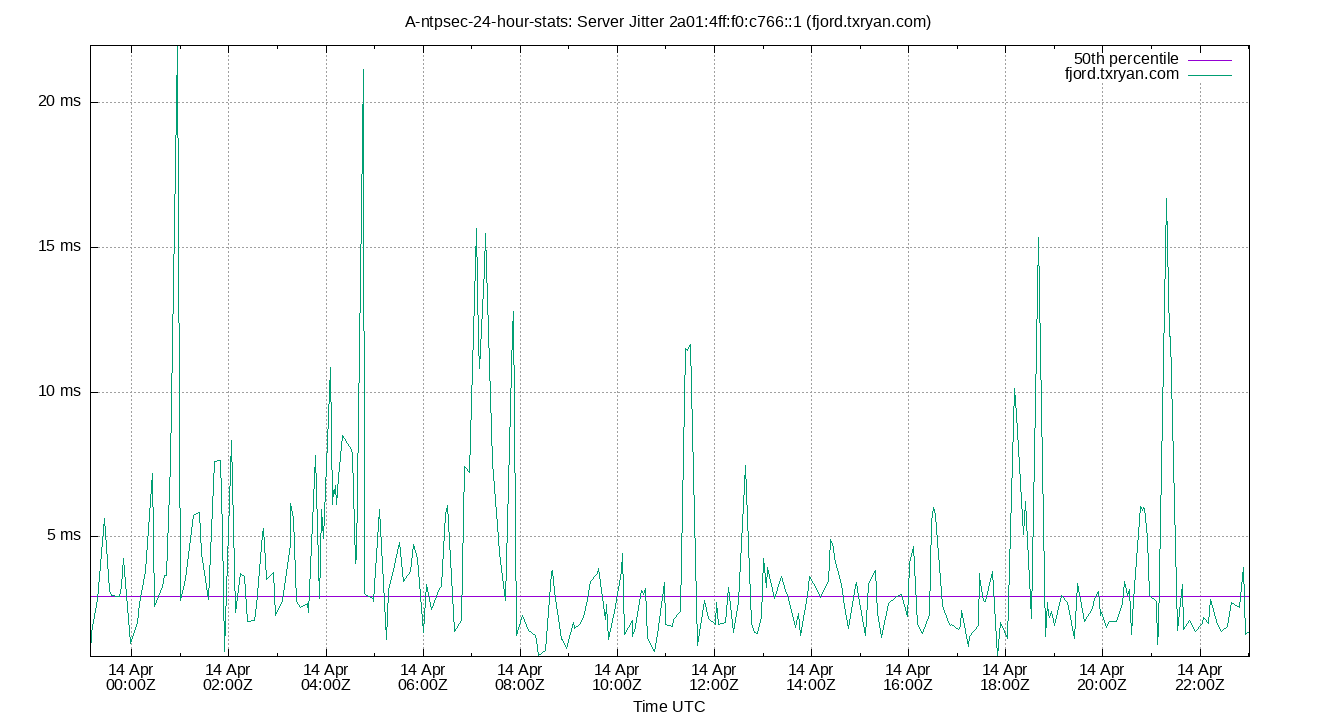

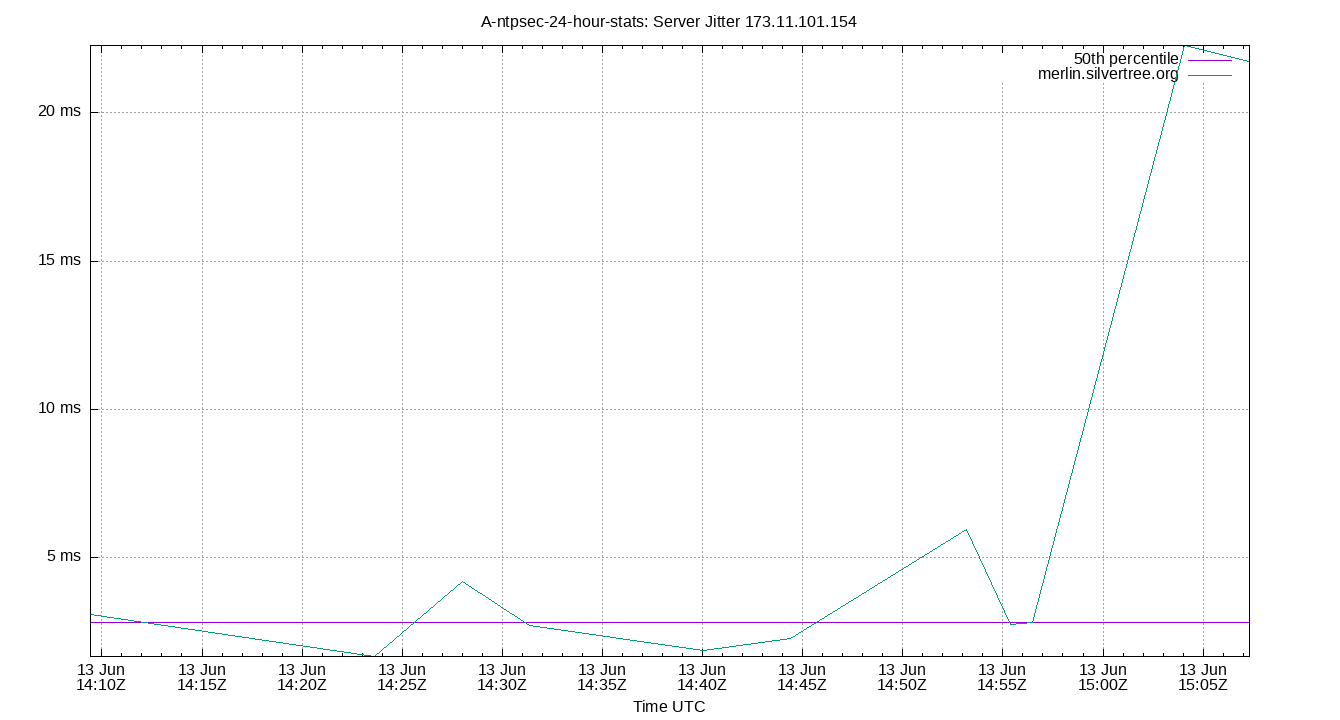

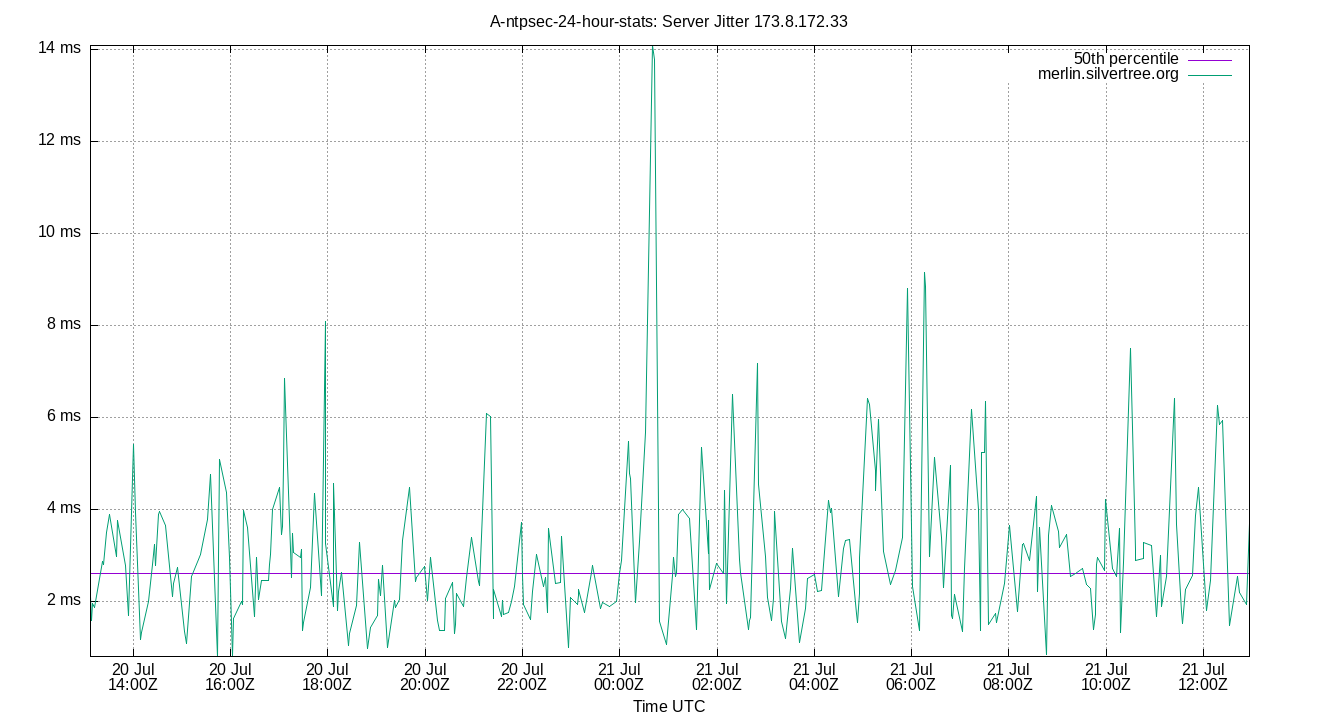

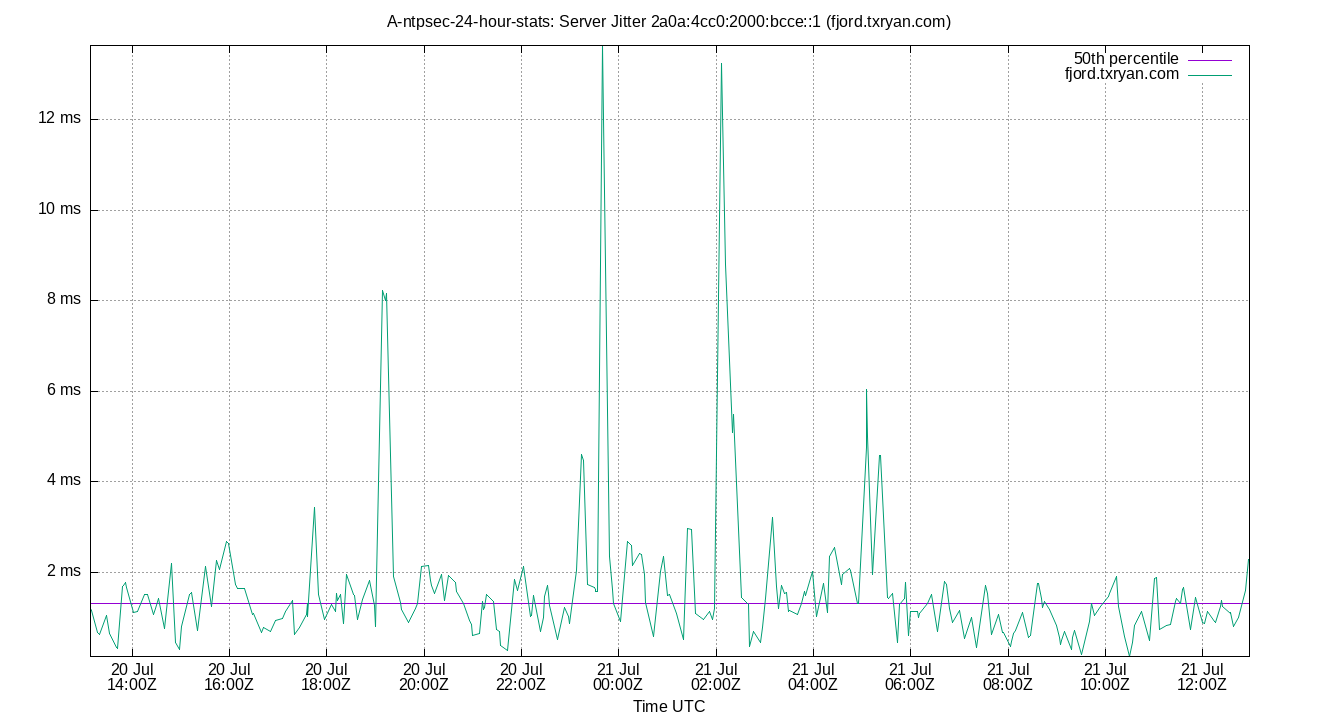

Server Jitters

peer jitters plot

The RMS Jitter of all refclocks and servers. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

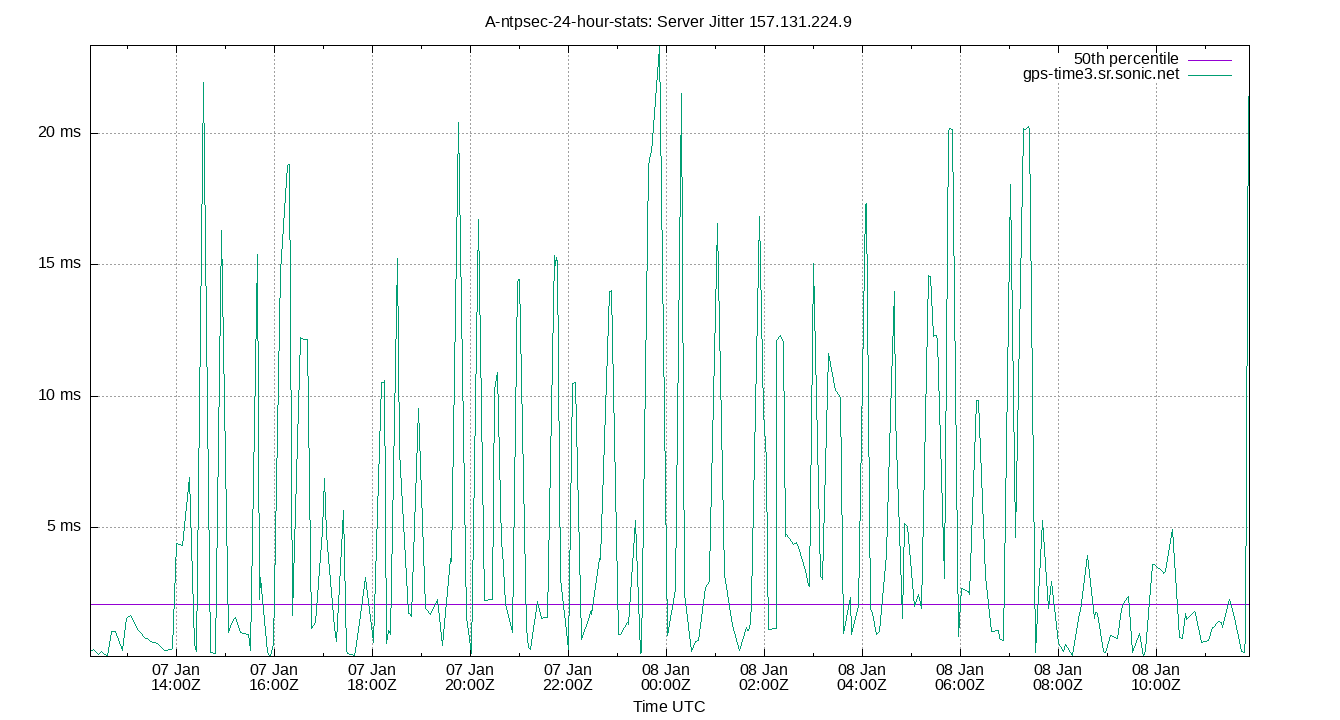

Server Jitter 157.131.224.9

peer jitter 157.131.224.9 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 157.131.224.9 0.119 0.150 0.198 0.881 15.210 22.319 23.768 15.012 22.168 4.832 2.769 ms 1.292 5.974

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 173.11.101.155

peer jitter 173.11.101.155 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 173.11.101.155 1.216 1.281 1.720 3.110 16.060 23.548 24.807 14.340 22.266 4.882 5.097 ms 2.235 6.962

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 192.12.19.20

peer jitter 192.12.19.20 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 192.12.19.20 0.053 0.134 0.226 0.967 15.446 20.624 23.588 15.220 20.491 4.728 2.991 ms 1.177 5.16

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2606:4700:f1::1 (time.cloudflare.com)

peer jitter 2606:4700:f1::1 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2606:4700:f1::1 (time.cloudflare.com) 0.147 0.174 0.228 1.500 12.249 20.375 22.598 12.022 20.201 4.403 2.988 ms 1.926 8.352

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

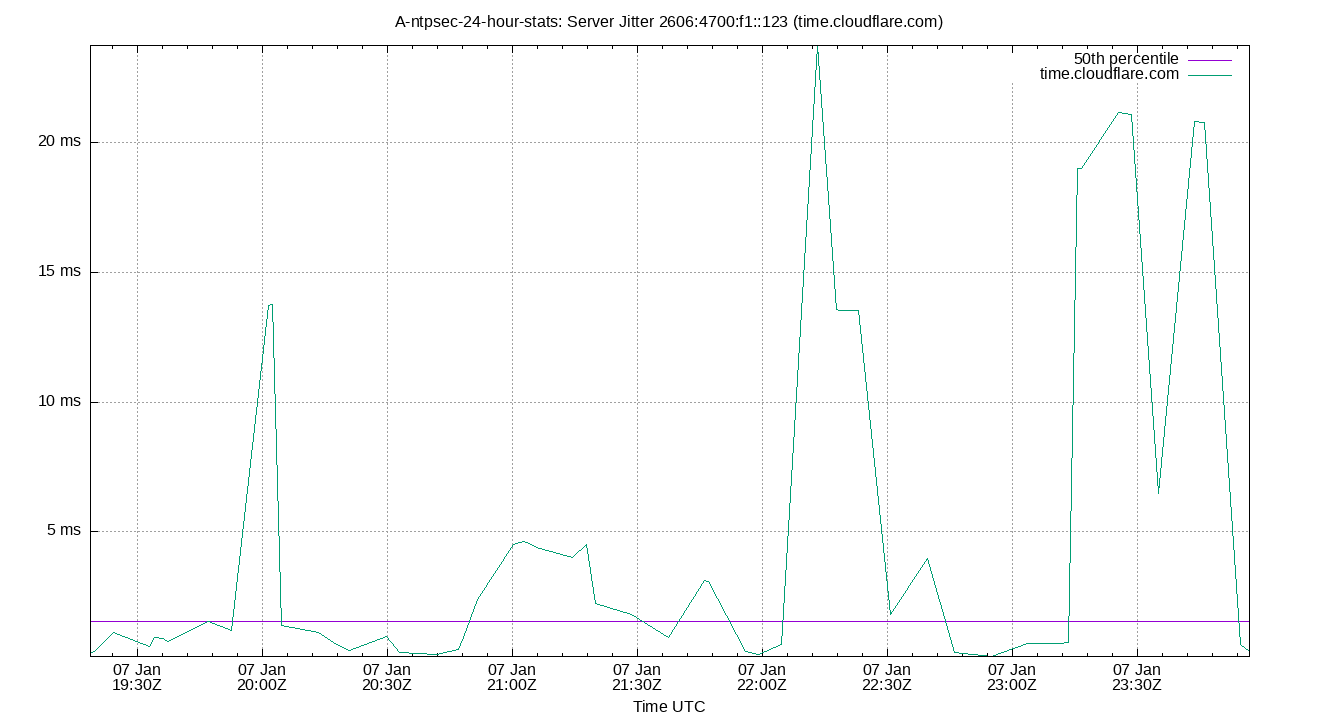

Server Jitter 2606:4700:f1::123 (time.cloudflare.com)

peer jitter 2606:4700:f1::123 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2606:4700:f1::123 (time.cloudflare.com) 0.071 0.124 0.187 0.906 7.148 22.567 22.613 6.960 22.443 3.420 1.729 ms 3.389 21.49

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

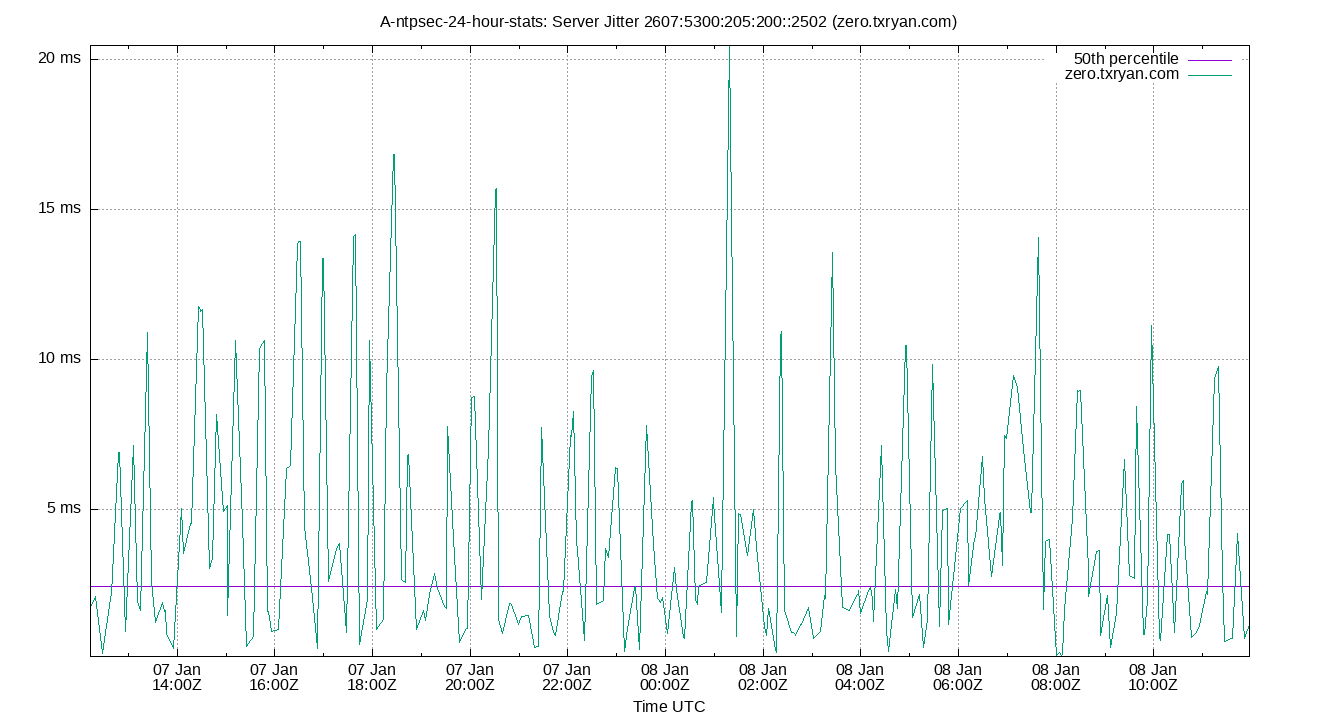

Server Jitter 2607:5300:205:200::2502 (zero.txryan.com)

peer jitter 2607:5300:205:200::2502 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2607:5300:205:200::2502 (zero.txryan.com) 0.124 0.194 0.267 1.492 10.162 14.341 14.700 9.894 14.146 3.170 2.670 ms 1.439 4.958

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

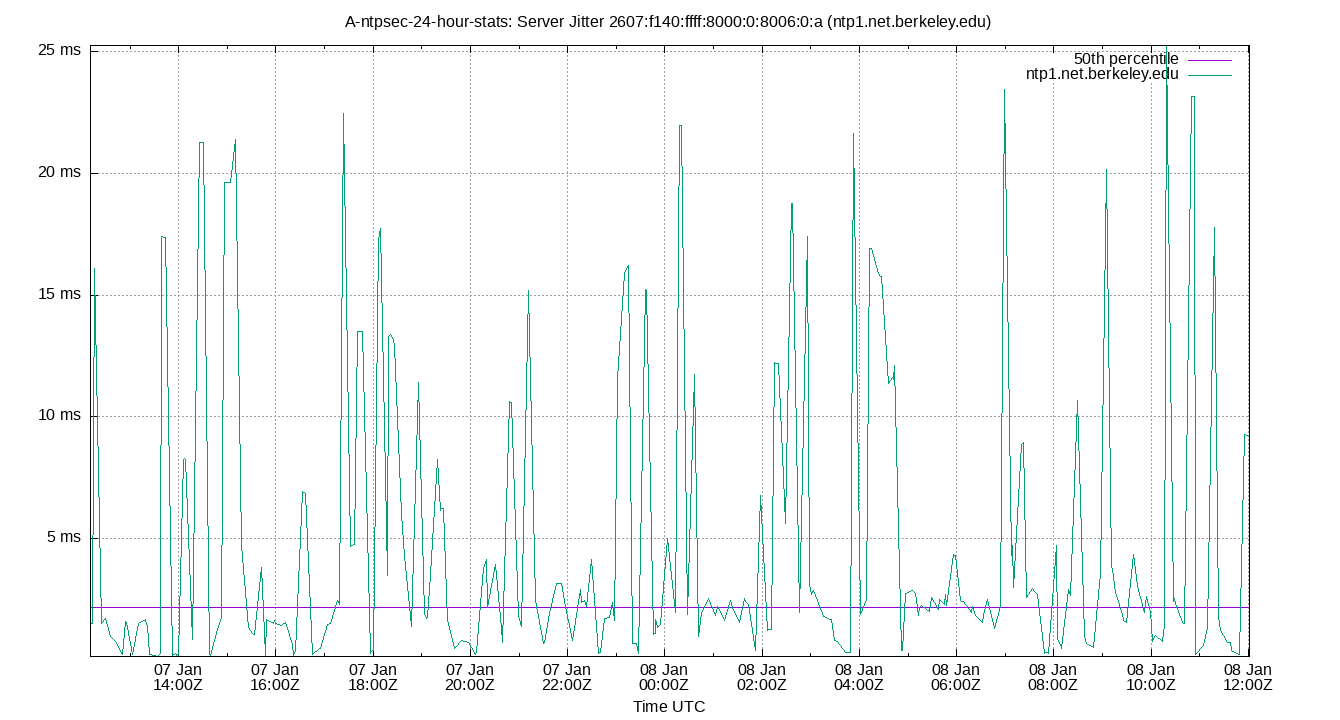

Server Jitter 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu)

peer jitter 2607:f140:ffff:8000:0:8006:0:a plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu) 0.113 0.147 0.229 1.473 13.969 23.228 23.486 13.740 23.082 4.404 2.926 ms 1.855 8.395

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 50.116.42.84

peer jitter 50.116.42.84 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 50.116.42.84 0.106 0.184 0.222 1.189 17.542 25.823 31.116 17.320 25.639 5.604 3.521 ms 1.257 6.04

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 52.10.183.132

peer jitter 52.10.183.132 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 52.10.183.132 0.175 0.206 0.229 1.054 14.303 18.027 23.100 14.074 17.821 4.341 2.713 ms 1.246 5.235

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 66.220.9.122

peer jitter 66.220.9.122 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 66.220.9.122 0.139 0.153 0.221 1.117 14.774 22.128 23.460 14.553 21.975 4.835 2.931 ms 1.375 6.034

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter SHM(0)

peer jitter SHM(0) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter SHM(0) 0.122 0.186 0.275 0.561 1.238 1.811 2.778 0.963 1.625 0.325 0.640 ms 5.459 20.16

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter SHM(1)

peer jitter SHM(1) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter SHM(1) 0.118 0.246 0.334 0.740 1.658 2.345 3.844 1.324 2.099 0.436 0.841 µs 5.082 17.85

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Summary


Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -442.032 -440.491 -433.243 -295.532 -186.035 -184.692 -182.266 247.208 255.799 85.228 -293.548 ppb -101.3 514.1
Local Clock Time Offset -3.540 -2.201 -1.158 0.066 0.967 1.357 2.416 2.125 3.558 0.661 0.010 µs -4.776 15.37
Local RMS Frequency Jitter 110.000 155.000 183.000 296.000 482.000 560.000 688.000 299.000 405.000 92.228 309.607 10e-12 20.84 73.68
Local RMS Time Jitter 0.294 0.395 0.476 0.799 1.354 1.615 1.944 0.878 1.220 0.270 0.842 µs 16.7 57.33
Server Jitter 157.131.224.9 0.119 0.150 0.198 0.881 15.210 22.319 23.768 15.012 22.168 4.832 2.769 ms 1.292 5.974
Server Jitter 173.11.101.155 1.216 1.281 1.720 3.110 16.060 23.548 24.807 14.340 22.266 4.882 5.097 ms 2.235 6.962
Server Jitter 192.12.19.20 0.053 0.134 0.226 0.967 15.446 20.624 23.588 15.220 20.491 4.728 2.991 ms 1.177 5.16
Server Jitter 2606:4700:f1::1 (time.cloudflare.com) 0.147 0.174 0.228 1.500 12.249 20.375 22.598 12.022 20.201 4.403 2.988 ms 1.926 8.352
Server Jitter 2606:4700:f1::123 (time.cloudflare.com) 0.071 0.124 0.187 0.906 7.148 22.567 22.613 6.960 22.443 3.420 1.729 ms 3.389 21.49
Server Jitter 2607:5300:205:200::2502 (zero.txryan.com) 0.124 0.194 0.267 1.492 10.162 14.341 14.700 9.894 14.146 3.170 2.670 ms 1.439 4.958
Server Jitter 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu) 0.113 0.147 0.229 1.473 13.969 23.228 23.486 13.740 23.082 4.404 2.926 ms 1.855 8.395
Server Jitter 50.116.42.84 0.106 0.184 0.222 1.189 17.542 25.823 31.116 17.320 25.639 5.604 3.521 ms 1.257 6.04
Server Jitter 52.10.183.132 0.175 0.206 0.229 1.054 14.303 18.027 23.100 14.074 17.821 4.341 2.713 ms 1.246 5.235
Server Jitter 66.220.9.122 0.139 0.153 0.221 1.117 14.774 22.128 23.460 14.553 21.975 4.835 2.931 ms 1.375 6.034
Server Jitter SHM(0) 0.122 0.186 0.275 0.561 1.238 1.811 2.778 0.963 1.625 0.325 0.640 ms 5.459 20.16
Server Jitter SHM(1) 0.118 0.246 0.334 0.740 1.658 2.345 3.844 1.324 2.099 0.436 0.841 µs 5.082 17.85
Server Offset 157.131.224.9 2.229 2.459 3.637 4.022 4.199 4.296 4.413 0.562 1.837 0.283 3.957 ms 2223 2.925e+04
Server Offset 173.11.101.155 -3.440 -2.831 -1.939 -0.076 2.485 3.076 4.133 4.425 5.907 1.309 0.020 ms -3.553 8.399
Server Offset 192.12.19.20 2.456 2.725 3.434 4.081 5.659 6.165 6.197 2.225 3.439 0.649 4.223 ms 184 1121
Server Offset 2606:4700:f1::1 (time.cloudflare.com) 1.907 2.158 3.058 3.559 3.867 4.124 4.326 0.809 1.965 0.316 3.513 ms 1060 1.096e+04
Server Offset 2606:4700:f1::123 (time.cloudflare.com) 3.276 3.309 3.376 3.606 3.884 3.988 4.135 0.508 0.679 0.154 3.613 ms 1.143e+04 2.586e+05
Server Offset 2607:5300:205:200::2502 (zero.txryan.com) 1.790 2.329 2.946 3.303 3.580 3.735 3.916 0.634 1.406 0.225 3.267 ms 2524 3.469e+04
Server Offset 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu) 2.269 2.353 3.213 3.655 3.849 3.932 3.979 0.637 1.579 0.268 3.613 ms 1972 2.496e+04
Server Offset 50.116.42.84 1.715 1.862 3.678 5.062 5.380 5.520 5.595 1.702 3.657 0.586 4.898 ms 417 3178
Server Offset 52.10.183.132 2.279 2.511 3.429 3.796 4.066 4.270 4.415 0.638 1.759 0.236 3.762 ms 3391 5.131e+04
Server Offset 66.220.9.122 1.518 1.847 2.411 3.445 4.173 4.312 4.390 1.762 2.466 0.570 3.364 ms 131.9 712.9
Server Offset SHM(0) -102.466 -101.961 -100.985 -97.560 -95.196 -94.556 -93.542 5.789 7.405 1.676 -97.649 ms -2.083e+05 1.236e+07
Server Offset SHM(1) -3.541 -2.202 -1.159 0.067 0.968 1.358 2.417 2.127 3.560 0.662 0.010 µs -4.773 15.35
TDOP 0.490 0.510 0.560 0.790 1.190 1.480 1.730 0.630 0.970 0.205 0.831 38.39 158.2
Temp ZONE0 44.546 44.546 45.084 46.160 47.236 47.774 47.774 2.152 3.228 0.897 46.219 °C
nSats 7.000 8.000 8.000 10.000 12.000 12.000 12.000 4.000 4.000 1.178 10.062 nSat 452 3583
Summary as CSV file


Glossary:

frequency offset:
The difference between the ntpd calculated frequency and the local system clock frequency (usually in parts per million, ppm)
jitter, dispersion:
The short term change in a value. NTP measures Local Time Jitter, Refclock Jitter, and Server Jitter in seconds. Local Frequency Jitter is in ppm or ppb.
kurtosis, Kurt:
The kurtosis of a random variable X is the fourth standardized moment and is a dimension-less ratio. ntpviz uses the Pearson's moment coefficient of kurtosis. A normal distribution has a kurtosis of three. NIST describes a kurtosis over three as "heavy tailed" and one under three as "light tailed".
ms, millisecond:
One thousandth of a second = 0.001 seconds, 1e-3 seconds
mu, mean:
The arithmetic mean: the sum of all the values divided by the number of values. The formula for mu is: "mu = (∑xi) / N". Where xi denotes the data points and N is the number of data points.
ns, nanosecond:
One billionth of a second, also one thousandth of a microsecond, 0.000000001 seconds and 1e-9 seconds.
percentile:
The value below which a given percentage of values fall.
ppb, parts per billion:
Ratio between two values. These following are all the same: 1 ppb, one in one billion, 1/1,000,000,000, 0.000,000,001, 1e-9 and 0.000,000,1%
ppm, parts per million:
Ratio between two values. These following are all the same: 1 ppm, one in one million, 1/1,000,000, 0.000,001, and 0.000,1%
‰, parts per thousand:
Ratio between two values. These following are all the same: 1 ‰. one in one thousand, 1/1,000, 0.001, and 0.1%
refclock:
Reference clock, a local GPS module or other local source of time.
remote clock:
Any clock reached over the network, LAN or WAN. Also called a peer or server.
time offset:
The difference between the ntpd calculated time and the local system clock's time. Also called phase offset.
σ, sigma:
Sigma denotes the standard deviation (SD) and is centered on the arithmetic mean of the data set. The SD is simply the square root of the variance of the data set. Two sigma is simply twice the standard deviation. Three sigma is three times sigma. Smaller is better.
The formula for sigma is: "σ = √[ ∑(xi-mu)^2 / N ]". Where xi denotes the data points and N is the number of data points.
skewness, Skew:
The skewness of a random variable X is the third standardized moment and is a dimension-less ratio. ntpviz uses the Pearson's moment coefficient of skewness. Wikipedia describes it best: "The qualitative interpretation of the skew is complicated and unintuitive."
A normal distribution has a skewness of zero.
upstream clock:
Any server or reference clock used as a source of time.
µs, us, microsecond:
One millionth of a second, also one thousandth of a millisecond, 0.000,001 seconds, and 1e-6 seconds.



This page autogenerated by ntpviz, part of the NTPsec project
html 5    Valid CSS!
