NTPsec

A-ntpsec-1-hour-stats

Report generated: Tue May 12 22:03:04 2026 UTC
Start Time: Tue May 12 21:02:36 2026 UTC
End Time: Tue May 12 22:03:04 2026 UTC
Report published: Tue May 12 03:03:29 PM 2026 PDT
Report Period: 0.0 days

Local Clock Time/Frequency Offsets

local offset plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Time Offset -2.431 -2.058 -0.926 0.063 1.048 1.513 1.871 1.974 3.571 0.639 0.065 µs -3.982 12.07
Local Clock Frequency Offset -160.721 -160.202 -159.439 -151.245 -145.309 -144.501 -144.272 14.130 15.701 4.596 -152.502 ppb -4.003e+04 1.372e+06

The time and frequency offsets between the ntpd calculated time and the local system clock. Showing frequency offset (red, in parts per million, scale on right) and the time offset (blue, in μs, scale on left). Quick changes in time offset will lead to larger frequency offsets.

These are fields 3 (time) and 4 (frequency) from the loopstats log file.



Local RMS Time Jitter

local jitter plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Time Jitter 0.443 0.496 0.548 0.795 1.246 1.604 1.933 0.698 1.108 0.223 0.826 µs 29.44 120.5

The RMS Jitter of the local clock offset. In other words, how fast the local clock offset is changing.

Lower is better. An ideal system would be a horizontal line at 0μs.

RMS jitter is field 5 in the loopstats log file.



Local RMS Frequency Jitter

local stability plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Frequency Jitter 194.000 198.000 213.000 286.000 463.000 571.000 605.000 250.000 373.000 73.694 302.360 10e-12 40.55 172.6

The RMS Frequency Jitter (aka wander) of the local clock's frequency. In other words, how fast the local clock changes frequency.

Lower is better. An ideal clock would be a horizontal line at 0ppm.

RMS Frequency Jitter is field 6 in the loopstats log file.



Local Clock Time Offset Histogram

local offset histogram plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Offset -2.431 -2.058 -0.926 0.063 1.048 1.513 1.871 1.974 3.571 0.639 0.065 µs -3.982 12.07

The clock offsets of the local clock as a histogram.

The Local Clock Offset is field 3 from the loopstats log file.



Local Temperatures

local temps plot

Local temperatures. These will be site-specific depending upon what temperature sensors you collect data from. Temperature changes affect the local clock crystal frequency and stability. The math of how temperature changes frequency is complex, and also depends on crystal aging. So there is no easy way to correct for it in software. This is the single most important component of frequency drift.

The Local Temperatures are from field 3 from the tempstats log file.



Local Frequency/Temp

local freq temps plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -160.721 -160.202 -159.439 -151.245 -145.309 -144.501 -144.272 14.130 15.701 4.596 -152.502 ppb -4.003e+04 1.372e+06
Temp ZONE0 47.236 47.236 47.236 47.774 47.774 47.774 47.774 0.538 0.538 0.259 47.577 °C

The frequency offsets and temperatures. Showing frequency offset (red, in parts per million, scale on right) and the temperatures.

These are field 4 (frequency) from the loopstats log file, and field 3 from the tempstats log file.



Local GPS

local gps plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
nSats 8.000 8.000 8.000 9.000 9.000 9.000 9.000 1.000 1.000 0.496 8.567 nSat 4370 7.195e+04
TDOP 0.780 0.780 0.800 0.990 1.180 1.360 1.360 0.380 0.580 0.129 0.990 319.1 2280

Local GPS. The Time Dilution of Precision (TDOP) is plotted in blue. The number of visible satellites (nSat) is plotted in red.

TDOP is field 3, and nSats is field 4, from the gpsd log file. The gpsd log file is created by the ntploggps program.

TDOP is a dimensionless error factor. Smaller numbers are better. TDOP ranges from 1 (ideal), 2 to 5 (good), to greater than 20 (poor). Some GNSS receivers report TDOP less than one which is theoretically impossible.



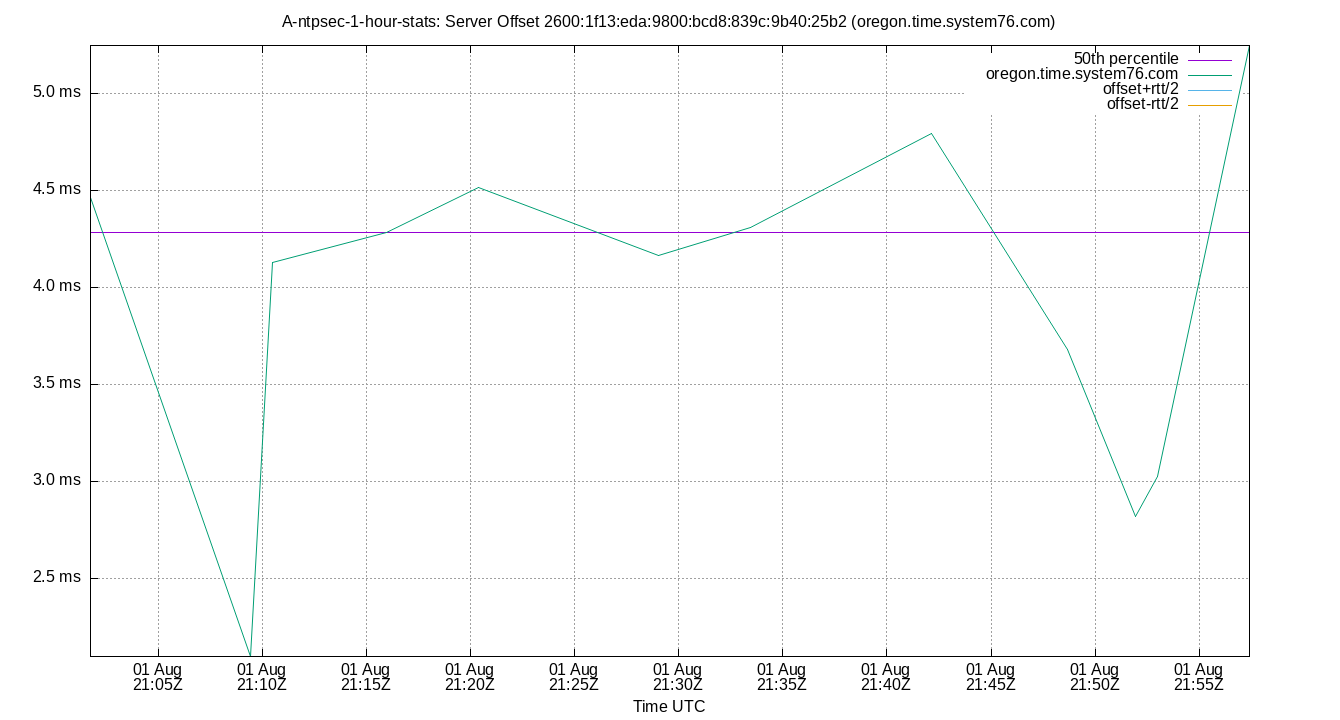

Server Offsets

peer offsets plot

The offset of all refclocks and servers. This can be useful to see if offset changes are happening in a single clock or all clocks together.

Clock Offset is field 5 in the peerstats log file.



Server Offset 173.11.101.155

peer offset 173.11.101.155 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 173.11.101.155 -2.756 -2.756 -2.756 -1.265 2.976 2.976 2.976 5.732 5.732 1.876 -0.737 ms -6.133 13.63

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 192.12.19.20

peer offset 192.12.19.20 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 192.12.19.20 1.745 1.745 1.745 2.115 4.100 4.100 4.100 2.354 2.354 0.887 2.598 ms 13.81 44.6

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 2001:5a8:601:4005::36

peer offset 2001:5a8:601:4005::36 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2001:5a8:601:4005::36 0.752 0.752 0.752 1.816 3.027 3.027 3.027 2.275 2.275 0.525 1.789 ms 21.37 74.68

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 2606:4700:f1::1 (time.cloudflare.com)

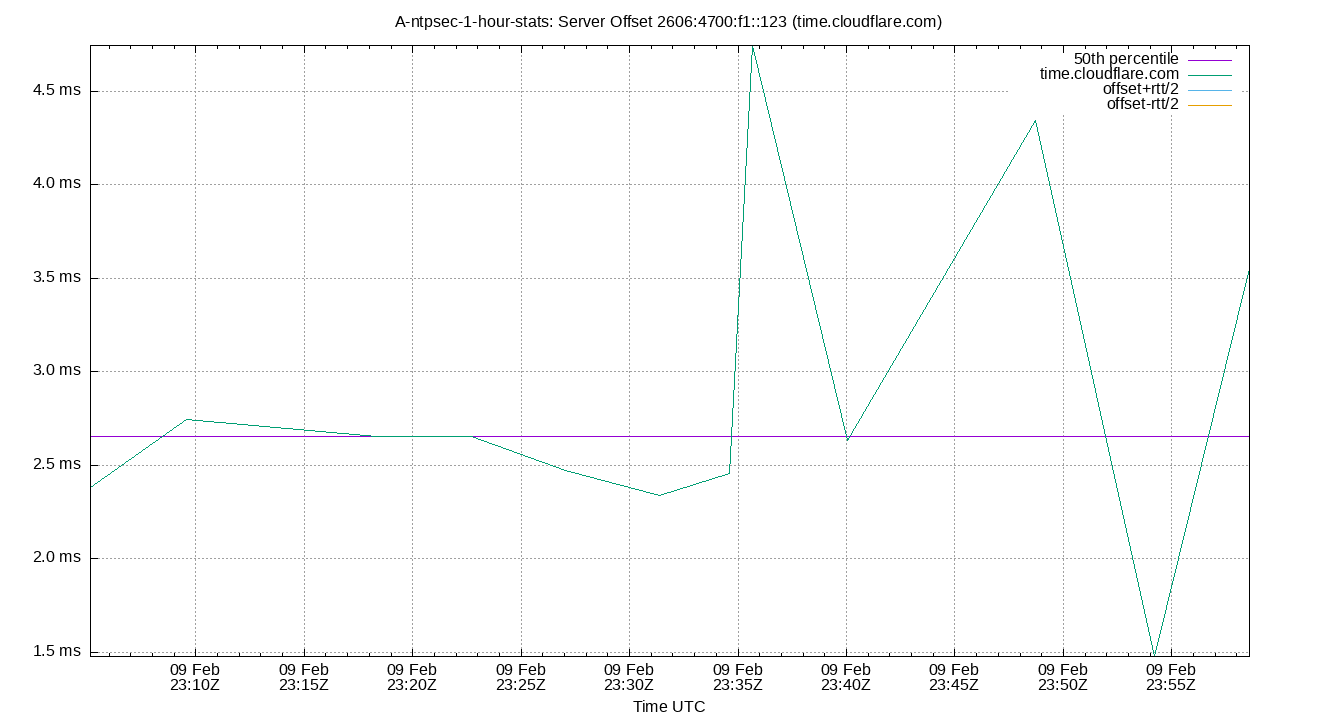

peer offset 2606:4700:f1::1 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2606:4700:f1::1 (time.cloudflare.com) 1.656 1.656 1.656 2.382 4.066 4.066 4.066 2.410 2.410 0.689 2.576 ms 29.79 116

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



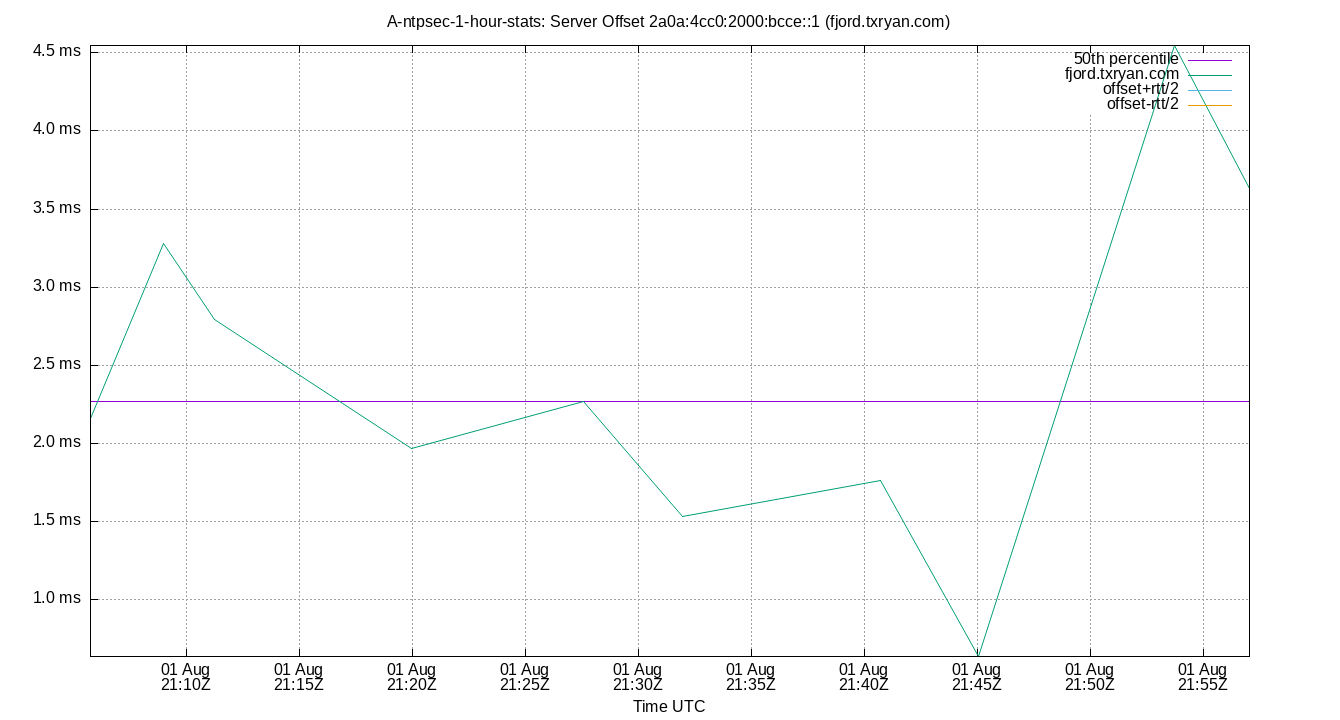

Server Offset 2607:5300:205:200::90d0 (fjord.txryan.com)

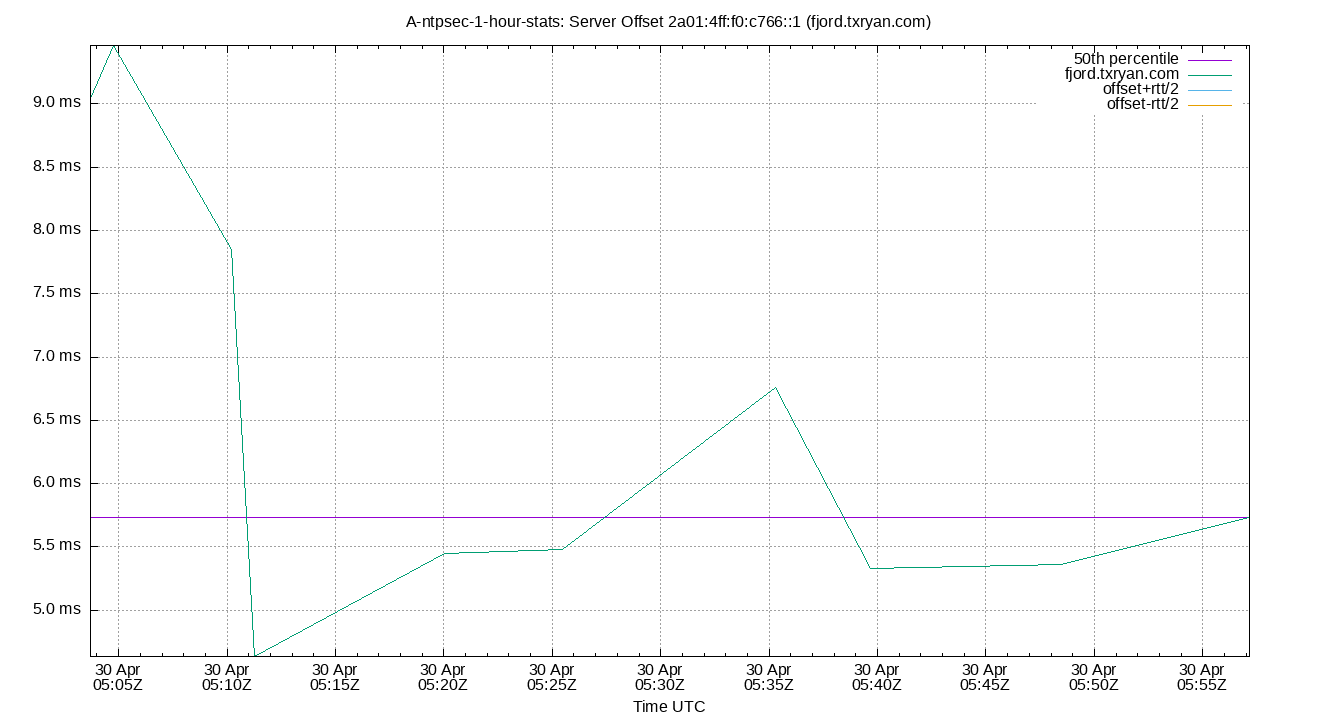

peer offset 2607:5300:205:200::90d0 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2607:5300:205:200::90d0 (fjord.txryan.com) 1.613 1.613 1.613 2.389 4.188 4.188 4.188 2.575 2.575 1.012 3.008 ms 13.62 39.93

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu)

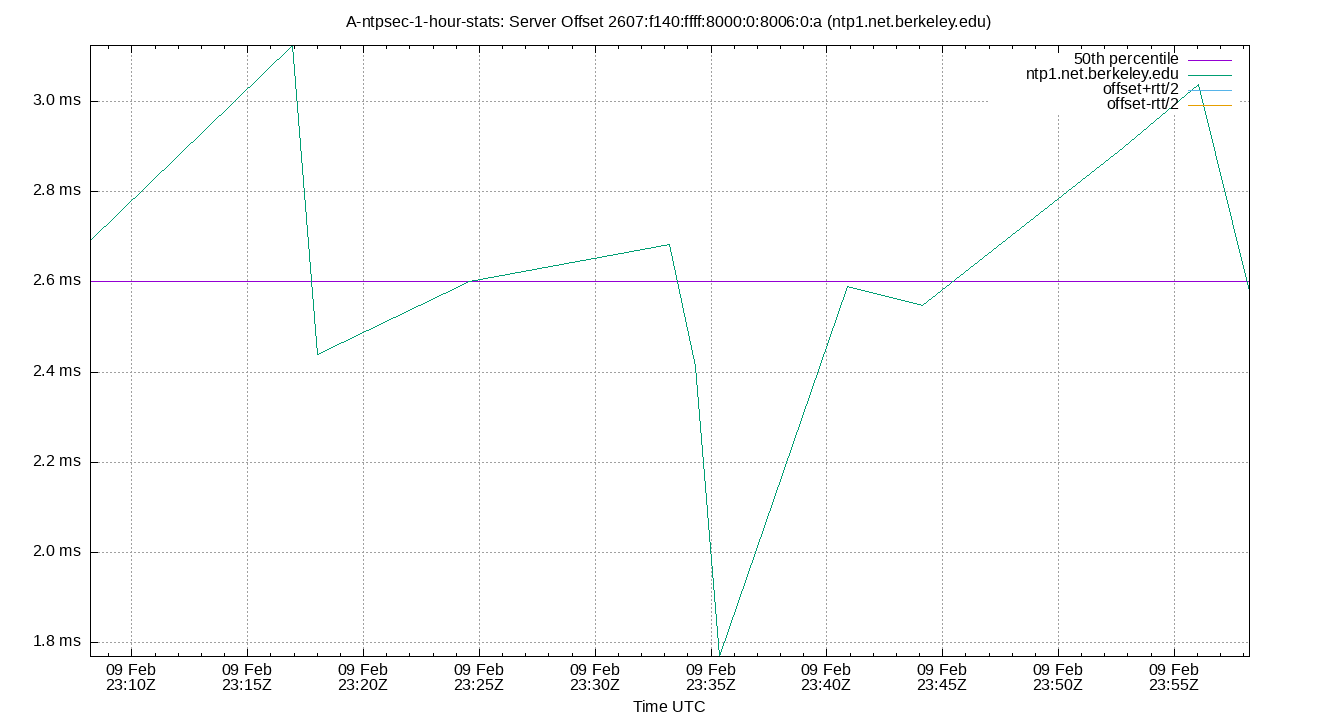

peer offset 2607:f140:ffff:8000:0:8006:0:a plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu) 1.844 1.844 1.844 2.320 2.769 2.769 2.769 0.925 0.925 0.237 2.324 ms 711.9 6508

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 50.116.42.84

peer offset 50.116.42.84 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 50.116.42.84 1.302 1.302 1.302 2.431 4.195 4.195 4.195 2.893 2.893 0.831 2.599 ms 16.68 56.15

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 52.10.183.132

peer offset 52.10.183.132 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 52.10.183.132 1.092 1.092 1.092 3.631 3.893 3.893 3.893 2.801 2.801 1.055 2.978 ms 10.88 27.84

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 66.220.9.122

peer offset 66.220.9.122 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 66.220.9.122 0.523 0.523 0.523 1.875 3.674 3.674 3.674 3.152 3.152 0.744 1.872 ms 8.811 28.36

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset SHM(0)

peer offset SHM(0) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset SHM(0) -98.251 -98.251 -97.750 -95.979 -95.174 -94.732 -94.732 2.576 3.519 0.766 -96.137 ms -2.024e+06 2.56e+08

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset SHM(1)

peer offset SHM(1) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset SHM(1) -2.432 -2.059 -0.927 0.064 1.049 1.514 1.872 1.976 3.573 0.640 0.065 µs -3.981 12.06

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



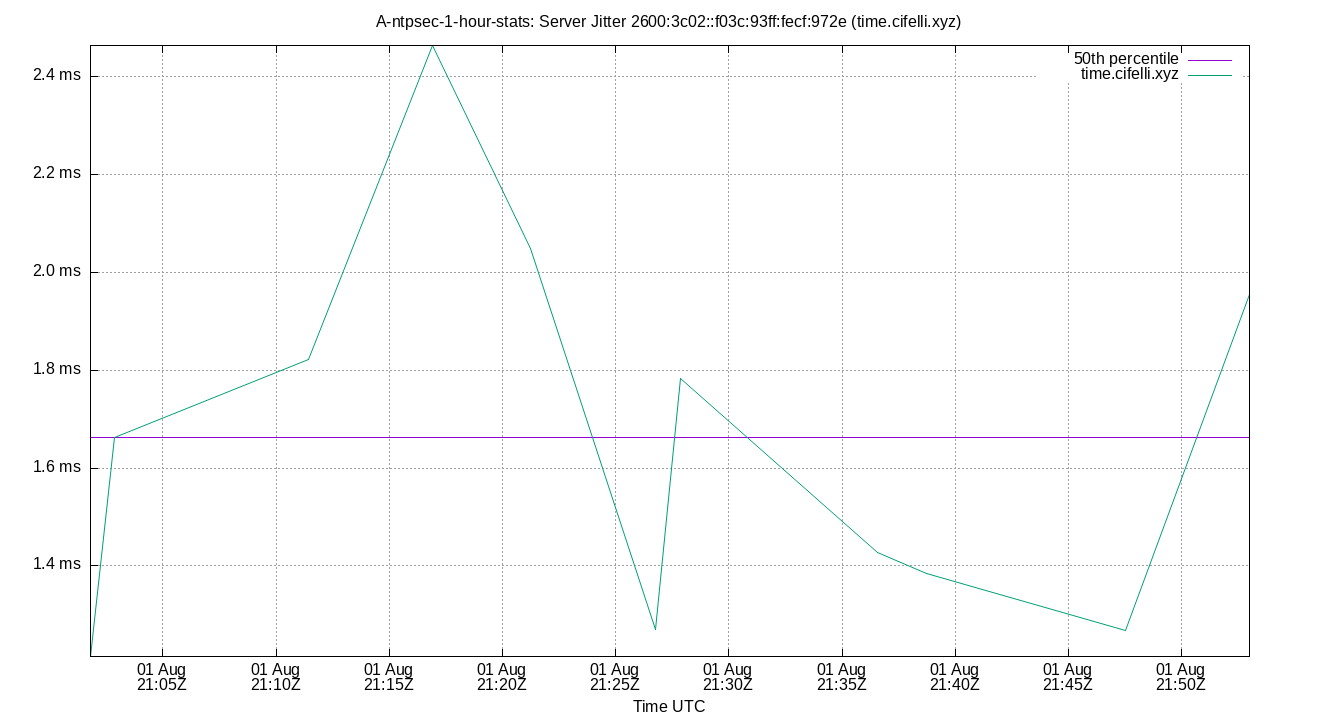

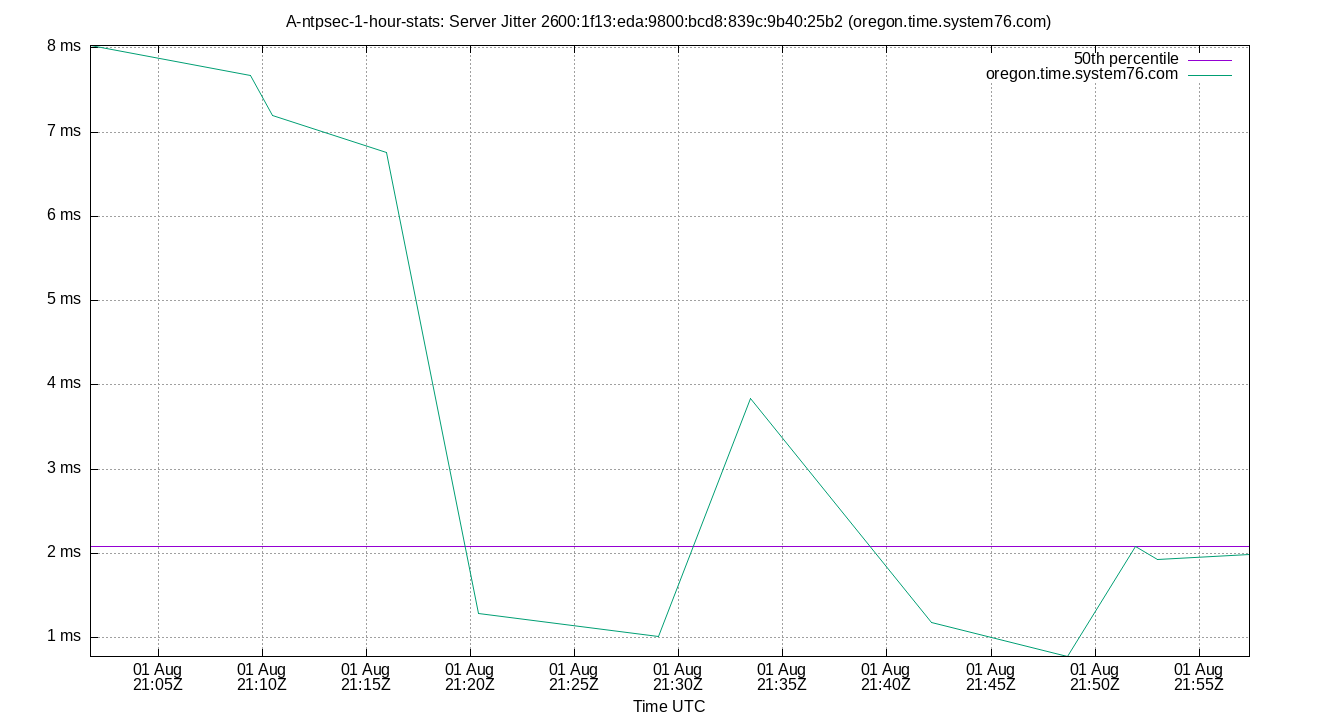

Server Jitters

peer jitters plot

The RMS Jitter of all refclocks and servers. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 173.11.101.155

peer jitter 173.11.101.155 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 173.11.101.155 1.266 1.266 1.266 2.973 6.243 6.243 6.243 4.977 4.977 1.422 3.003 ms 5.591 15.82

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 192.12.19.20

peer jitter 192.12.19.20 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 192.12.19.20 0.721 0.721 0.721 1.751 3.601 3.601 3.601 2.880 2.880 0.854 1.771 ms 5.32 14.68

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2001:5a8:601:4005::36

peer jitter 2001:5a8:601:4005::36 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2001:5a8:601:4005::36 1.265 1.265 1.265 2.070 3.225 3.225 3.225 1.960 1.960 0.613 2.035 ms 19.89 67.6

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2606:4700:f1::1 (time.cloudflare.com)

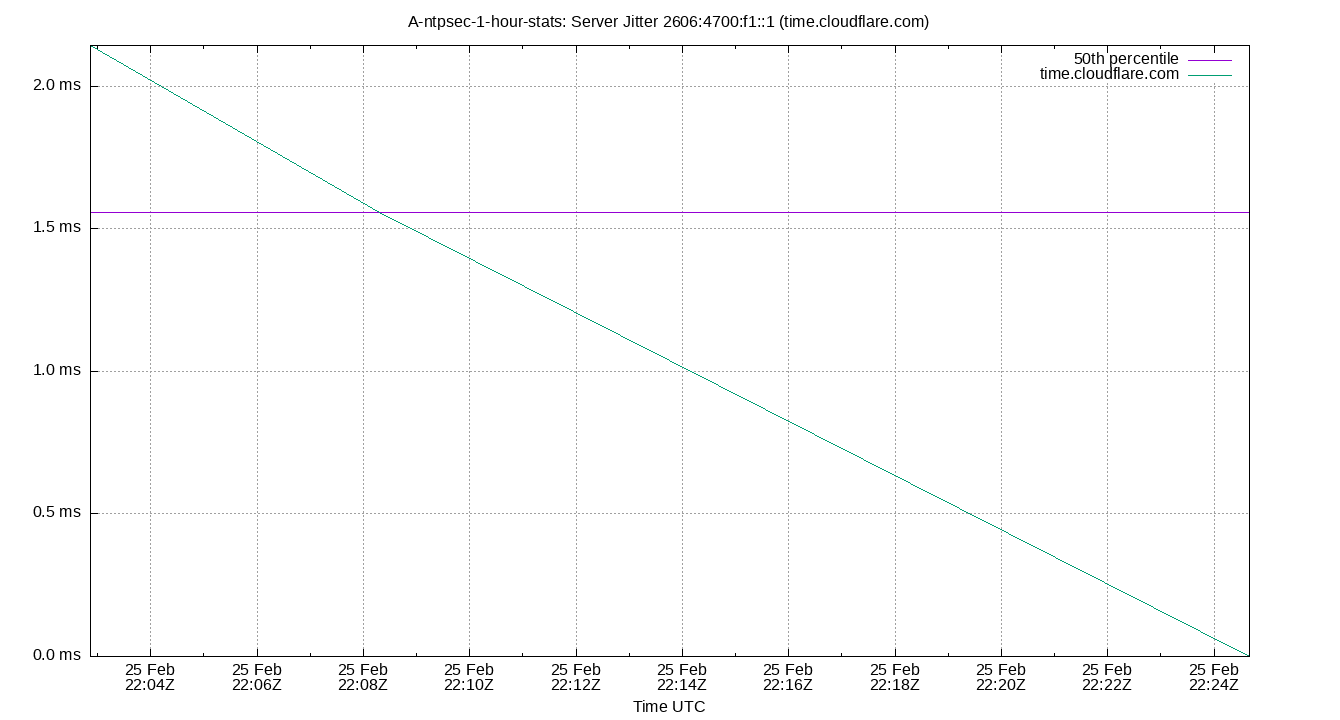

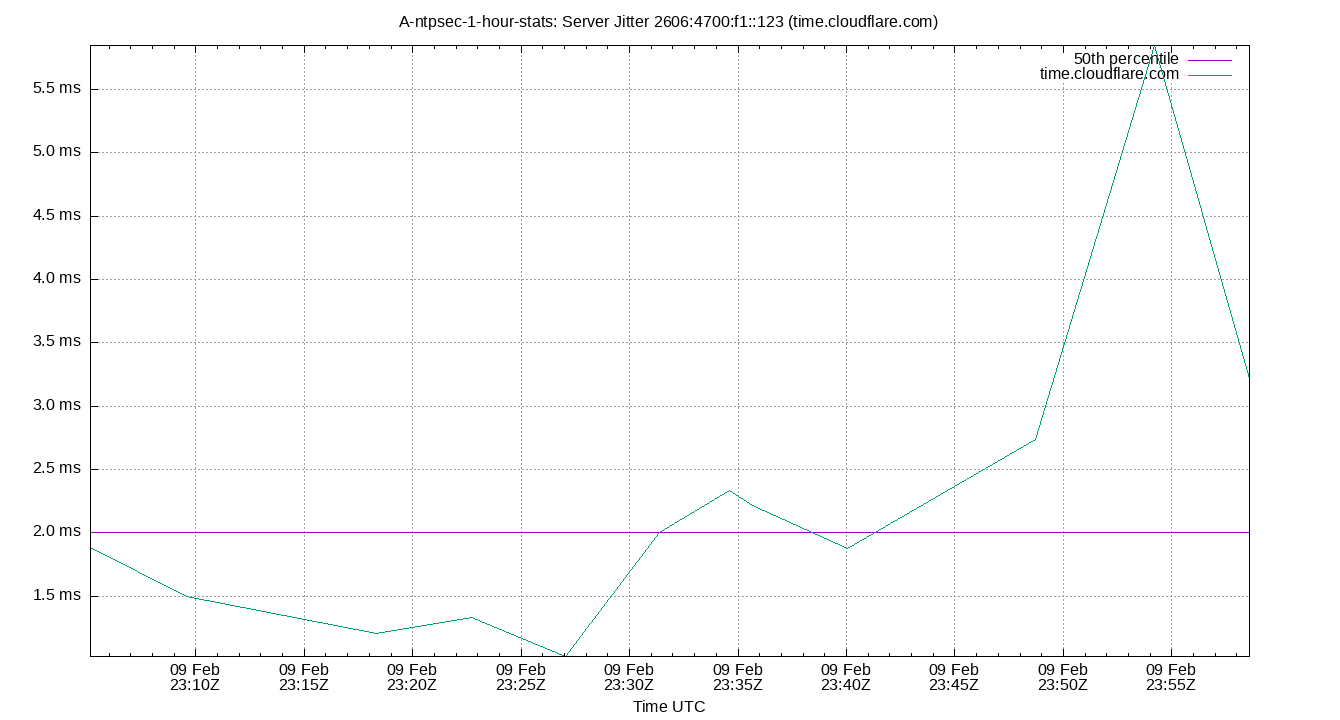

peer jitter 2606:4700:f1::1 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2606:4700:f1::1 (time.cloudflare.com) 0.410 0.410 0.410 2.525 14.893 14.893 14.893 14.482 14.482 5.137 4.963 ms 1.092 2.634

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2607:5300:205:200::90d0 (fjord.txryan.com)

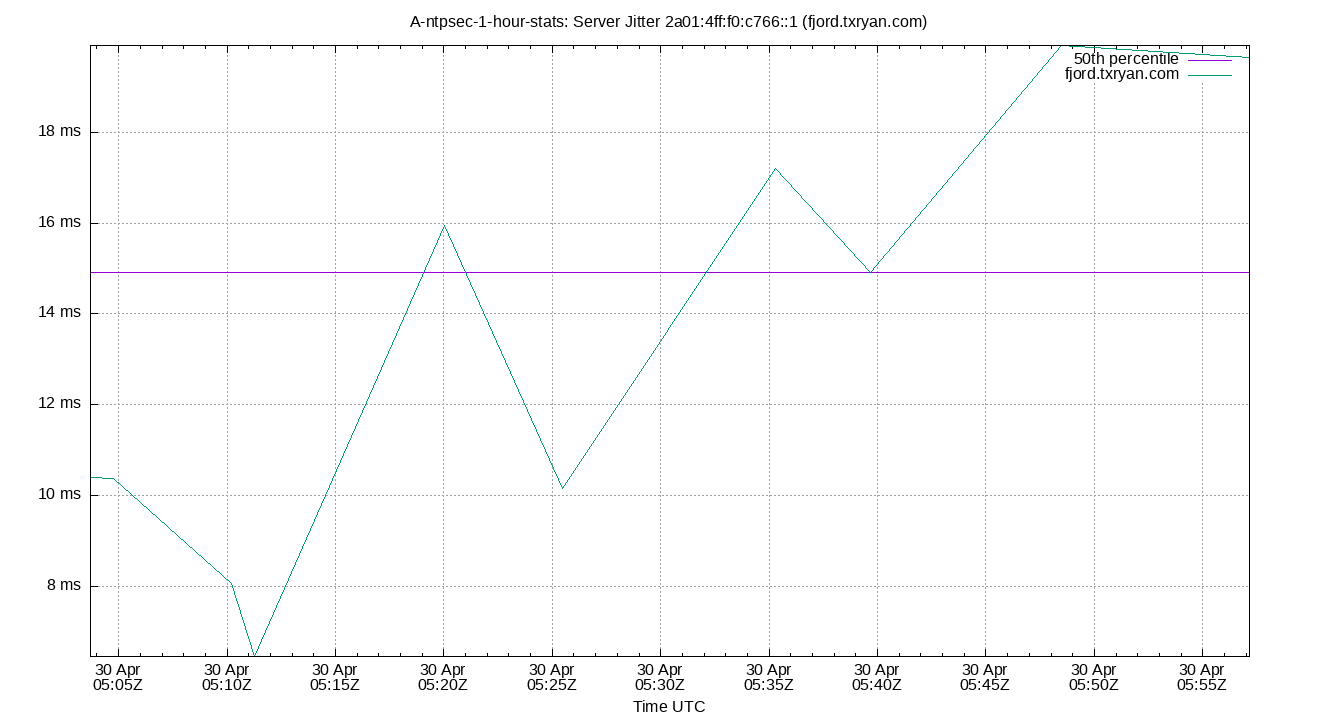

peer jitter 2607:5300:205:200::90d0 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2607:5300:205:200::90d0 (fjord.txryan.com) 0.808 0.808 0.808 1.775 6.651 6.651 6.651 5.844 5.844 1.756 2.397 ms 2.532 6.285

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu)

peer jitter 2607:f140:ffff:8000:0:8006:0:a plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu) 1.215 1.215 1.215 1.671 12.879 12.879 12.879 11.665 11.665 4.058 3.271 ms 1.313 3.402

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 50.116.42.84

peer jitter 50.116.42.84 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 50.116.42.84 0.219 0.219 0.219 1.797 3.328 3.328 3.328 3.109 3.109 0.956 1.923 ms 4.161 9.537

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 52.10.183.132

peer jitter 52.10.183.132 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 52.10.183.132 0.404 0.404 0.404 1.078 3.593 3.593 3.593 3.189 3.189 0.869 1.331 ms 3.223 9.369

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 66.220.9.122

peer jitter 66.220.9.122 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 66.220.9.122 1.135 1.135 1.135 2.115 4.563 4.563 4.563 3.428 3.428 0.951 2.239 ms 7.828 25.29

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter SHM(0)

peer jitter SHM(0) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter SHM(0) 0.250 0.250 0.282 0.519 1.465 1.588 1.588 1.182 1.338 0.296 0.571 ms 5.499 19.81

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter SHM(1)

peer jitter SHM(1) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter SHM(1) 0.274 0.327 0.399 0.740 1.638 2.321 2.815 1.239 1.994 0.389 0.840 µs 6.785 25.46

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Summary


Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -160.721 -160.202 -159.439 -151.245 -145.309 -144.501 -144.272 14.130 15.701 4.596 -152.502 ppb -4.003e+04 1.372e+06
Local Clock Time Offset -2.431 -2.058 -0.926 0.063 1.048 1.513 1.871 1.974 3.571 0.639 0.065 µs -3.982 12.07
Local RMS Frequency Jitter 194.000 198.000 213.000 286.000 463.000 571.000 605.000 250.000 373.000 73.694 302.360 10e-12 40.55 172.6
Local RMS Time Jitter 0.443 0.496 0.548 0.795 1.246 1.604 1.933 0.698 1.108 0.223 0.826 µs 29.44 120.5
Server Jitter 173.11.101.155 1.266 1.266 1.266 2.973 6.243 6.243 6.243 4.977 4.977 1.422 3.003 ms 5.591 15.82
Server Jitter 192.12.19.20 0.721 0.721 0.721 1.751 3.601 3.601 3.601 2.880 2.880 0.854 1.771 ms 5.32 14.68
Server Jitter 2001:5a8:601:4005::36 1.265 1.265 1.265 2.070 3.225 3.225 3.225 1.960 1.960 0.613 2.035 ms 19.89 67.6
Server Jitter 2606:4700:f1::1 (time.cloudflare.com) 0.410 0.410 0.410 2.525 14.893 14.893 14.893 14.482 14.482 5.137 4.963 ms 1.092 2.634
Server Jitter 2607:5300:205:200::90d0 (fjord.txryan.com) 0.808 0.808 0.808 1.775 6.651 6.651 6.651 5.844 5.844 1.756 2.397 ms 2.532 6.285
Server Jitter 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu) 1.215 1.215 1.215 1.671 12.879 12.879 12.879 11.665 11.665 4.058 3.271 ms 1.313 3.402
Server Jitter 50.116.42.84 0.219 0.219 0.219 1.797 3.328 3.328 3.328 3.109 3.109 0.956 1.923 ms 4.161 9.537
Server Jitter 52.10.183.132 0.404 0.404 0.404 1.078 3.593 3.593 3.593 3.189 3.189 0.869 1.331 ms 3.223 9.369
Server Jitter 66.220.9.122 1.135 1.135 1.135 2.115 4.563 4.563 4.563 3.428 3.428 0.951 2.239 ms 7.828 25.29
Server Jitter SHM(0) 0.250 0.250 0.282 0.519 1.465 1.588 1.588 1.182 1.338 0.296 0.571 ms 5.499 19.81
Server Jitter SHM(1) 0.274 0.327 0.399 0.740 1.638 2.321 2.815 1.239 1.994 0.389 0.840 µs 6.785 25.46
Server Offset 173.11.101.155 -2.756 -2.756 -2.756 -1.265 2.976 2.976 2.976 5.732 5.732 1.876 -0.737 ms -6.133 13.63
Server Offset 192.12.19.20 1.745 1.745 1.745 2.115 4.100 4.100 4.100 2.354 2.354 0.887 2.598 ms 13.81 44.6
Server Offset 2001:5a8:601:4005::36 0.752 0.752 0.752 1.816 3.027 3.027 3.027 2.275 2.275 0.525 1.789 ms 21.37 74.68
Server Offset 2606:4700:f1::1 (time.cloudflare.com) 1.656 1.656 1.656 2.382 4.066 4.066 4.066 2.410 2.410 0.689 2.576 ms 29.79 116
Server Offset 2607:5300:205:200::90d0 (fjord.txryan.com) 1.613 1.613 1.613 2.389 4.188 4.188 4.188 2.575 2.575 1.012 3.008 ms 13.62 39.93
Server Offset 2607:f140:ffff:8000:0:8006:0:a (ntp1.net.berkeley.edu) 1.844 1.844 1.844 2.320 2.769 2.769 2.769 0.925 0.925 0.237 2.324 ms 711.9 6508
Server Offset 50.116.42.84 1.302 1.302 1.302 2.431 4.195 4.195 4.195 2.893 2.893 0.831 2.599 ms 16.68 56.15
Server Offset 52.10.183.132 1.092 1.092 1.092 3.631 3.893 3.893 3.893 2.801 2.801 1.055 2.978 ms 10.88 27.84
Server Offset 66.220.9.122 0.523 0.523 0.523 1.875 3.674 3.674 3.674 3.152 3.152 0.744 1.872 ms 8.811 28.36
Server Offset SHM(0) -98.251 -98.251 -97.750 -95.979 -95.174 -94.732 -94.732 2.576 3.519 0.766 -96.137 ms -2.024e+06 2.56e+08
Server Offset SHM(1) -2.432 -2.059 -0.927 0.064 1.049 1.514 1.872 1.976 3.573 0.640 0.065 µs -3.981 12.06
TDOP 0.780 0.780 0.800 0.990 1.180 1.360 1.360 0.380 0.580 0.129 0.990 319.1 2280
Temp ZONE0 47.236 47.236 47.236 47.774 47.774 47.774 47.774 0.538 0.538 0.259 47.577 °C
nSats 8.000 8.000 8.000 9.000 9.000 9.000 9.000 1.000 1.000 0.496 8.567 nSat 4370 7.195e+04
Summary as CSV file


Glossary:

frequency offset:
The difference between the ntpd calculated frequency and the local system clock frequency (usually in parts per million, ppm)
jitter, dispersion:
The short term change in a value. NTP measures Local Time Jitter, Refclock Jitter, and Server Jitter in seconds. Local Frequency Jitter is in ppm or ppb.
kurtosis, Kurt:
The kurtosis of a random variable X is the fourth standardized moment and is a dimension-less ratio. ntpviz uses the Pearson's moment coefficient of kurtosis. A normal distribution has a kurtosis of three. NIST describes a kurtosis over three as "heavy tailed" and one under three as "light tailed".
ms, millisecond:
One thousandth of a second = 0.001 seconds, 1e-3 seconds
mu, mean:
The arithmetic mean: the sum of all the values divided by the number of values. The formula for mu is: "mu = (∑xi) / N". Where xi denotes the data points and N is the number of data points.
ns, nanosecond:
One billionth of a second, also one thousandth of a microsecond, 0.000000001 seconds and 1e-9 seconds.
percentile:
The value below which a given percentage of values fall.
ppb, parts per billion:
Ratio between two values. These following are all the same: 1 ppb, one in one billion, 1/1,000,000,000, 0.000,000,001, 1e-9 and 0.000,000,1%
ppm, parts per million:
Ratio between two values. These following are all the same: 1 ppm, one in one million, 1/1,000,000, 0.000,001, and 0.000,1%
‰, parts per thousand:
Ratio between two values. These following are all the same: 1 ‰. one in one thousand, 1/1,000, 0.001, and 0.1%
refclock:
Reference clock, a local GPS module or other local source of time.
remote clock:
Any clock reached over the network, LAN or WAN. Also called a peer or server.
time offset:
The difference between the ntpd calculated time and the local system clock's time. Also called phase offset.
σ, sigma:
Sigma denotes the standard deviation (SD) and is centered on the arithmetic mean of the data set. The SD is simply the square root of the variance of the data set. Two sigma is simply twice the standard deviation. Three sigma is three times sigma. Smaller is better.
The formula for sigma is: "σ = √[ ∑(xi-mu)^2 / N ]". Where xi denotes the data points and N is the number of data points.
skewness, Skew:
The skewness of a random variable X is the third standardized moment and is a dimension-less ratio. ntpviz uses the Pearson's moment coefficient of skewness. Wikipedia describes it best: "The qualitative interpretation of the skew is complicated and unintuitive."
A normal distribution has a skewness of zero.
upstream clock:
Any server or reference clock used as a source of time.
µs, us, microsecond:
One millionth of a second, also one thousandth of a millisecond, 0.000,001 seconds, and 1e-6 seconds.



This page autogenerated by ntpviz, part of the NTPsec project
